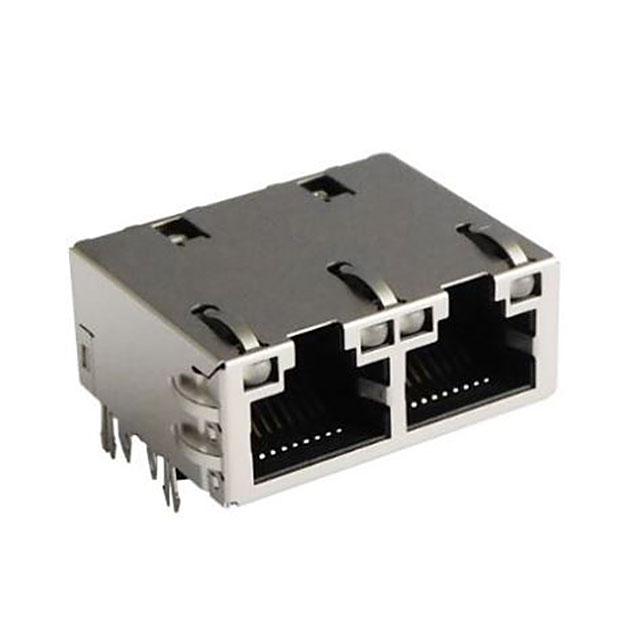

1840572-7
ActiveTRP Connector B.V.
CONN JACK 2PORT 1000 BASE-T PCB
Deep-Dive with AI
Search across all available documentation for this part.
1840572-7
ActiveTRP Connector B.V.
CONN JACK 2PORT 1000 BASE-T PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1840572-7 |
|---|---|
| Applications | 100 Base-T, 1000 Base-T, 10 Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Board Guide, Board Lock |
| Height Above Board | 13.45 mm |
| Height Above Board | 0.53 in |
| Housing Material | Polyamide (PA), Nylon |
| LED Color | Green - Green |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 8 |
| Number of Ports | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Orientation | 90 ° |
| Shield Material | Brass |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Up |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 180 | $ 14.09 | |
Description
General part information
1840572 Series
2 Port RJ45Through Hole 10/100/1000 Base-T
Documents
Technical documentation and resources
No documents available
