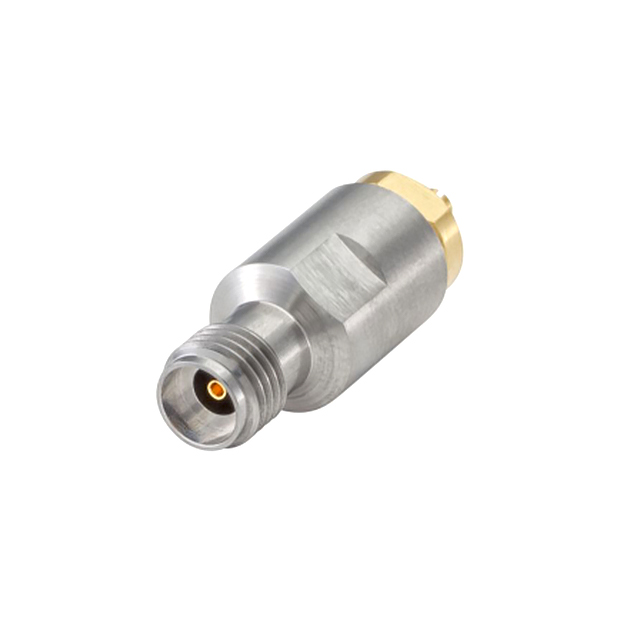

02K118-K00S3

Active

Rosenberger

COAX ADAPT SMP MINITO RPC-2.92

Search across all available documentation for this part.

Active

Rosenberger

COAX ADAPT SMP MINITO RPC-2.92

Technical Specifications

Parameters and characteristics for this part

Specification	02K118-K00S3

Adapter Series	Mini to RPC-2.92, SMP
Adapter Type	Jack to Jack
Body Finish	Gold; Passivated
Body Material	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	2.92 mm
Convert From (Adapter End)	OS-2.9, Jack, Female Socket
Convert To (Adapter End)	SMP Mini Jack, Female Socket
Dielectric Material	Polystyrene (PS), Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Impedance	Adapter Type	Conversion Type	Body Finish	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Dielectric Material	Center Gender	Center Contact Material	Center Contact Plating	Frequency - Max [Max]	Convert To (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Style	Adapter Series	Mounting Type	Features	Insertion Loss	Mating Cycles
Rosenberger 02K118-K00S3	50 Ohms	Jack to Jack	Between Series	Gold; Passivated	Beryllium Copper Stainless Steel	85 °C	-40 °C	Snap-On Threaded	Polystyrene (PS) Polytetrafluoroethylene (PTFE)	Female to Female	Beryllium Copper	Gold	40 GHz	Female Socket SMP Mini Jack	2.92 mm	Jack Female Socket OS-2.9	Straight	Mini to RPC-2.92 SMP	Free Hanging (In-Line)
Rosenberger 02K118-S00S3	50 Ohms	Plug to Jack	Between Series		Stainless Steel	85 °C	-40 °C	Snap-On Threaded	Polystyrene (PS) Polytetrafluoroethylene (PTFE)		Beryllium Copper	Gold	40 GHz	Male Pin SMP Mini Plug	2.92 mm	Jack Female Socket OS-2.9	Straight	Mini to RPC-2.92 SMP	Free Hanging (In-Line)	Full Detent	0.32 dB	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To SMP Mini Jack, Female Socket 50 Ohms
