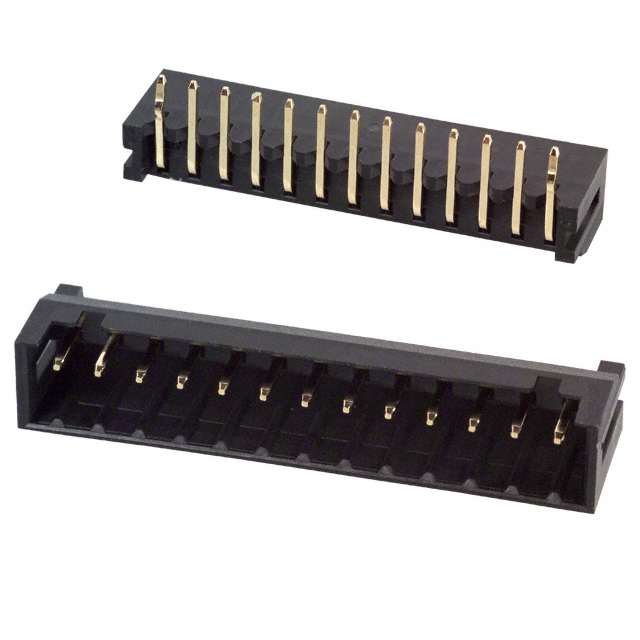

DF3-13P-2DS(01)

Active

Hirose Electric USA, Inc.

CONN HEADER R/A 13POS 2MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN HEADER R/A 13POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	DF3-13P-2DS(01)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Length - Mating [x]	0.122 in
Contact Length - Mating [x]	3.1 mm
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder, Press-Fit

Part	Mounting Type	Contact Shape	Contact Type	Current Rating (Amps)	Number of Rows	Material Flammability Rating	Insulation Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Style	Connector Type	Number of Positions	Fastening Type	Shrouding	Contact Material	Overall Contact Length [x]	Overall Contact Length [x]	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. DF3-13P-2DSA	Through Hole	Square	Male Pin	3 A	1	UL94 V-0	Nylon Polyamide (PA)	0.122 in	3.1 mm	0.114 in	2.9 mm	All	0.197 in	5 mm	Tin	105 ░C	-55 °C	Black	Board to Board Cable	Header	13	Push-Pull	Shrouded - 4 Wall	Brass	0.299 in	7.6 mm	0.079 in	2 mm	Press-Fit Solder
Hirose Electric USA, Inc. DF3-13P-2DS(01)	Through Hole Right Angle	Square	Male Pin	3 A	1	UL94 V-0	Nylon Polyamide (PA)	0.122 in	3.1 mm	0.114 in	2.9 mm	All	0.197 in	5 mm		105 ░C	-55 °C	Black	Board to Board Cable	Header	13	Push-Pull	Shrouded - 4 Wall	Brass			0.079 in	2 mm	Press-Fit Solder	Gold	0.203 Ám	8 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 1.00

General part information

Connector Header Through Hole, Right Angle 13 position 0.079" (2.00mm)
