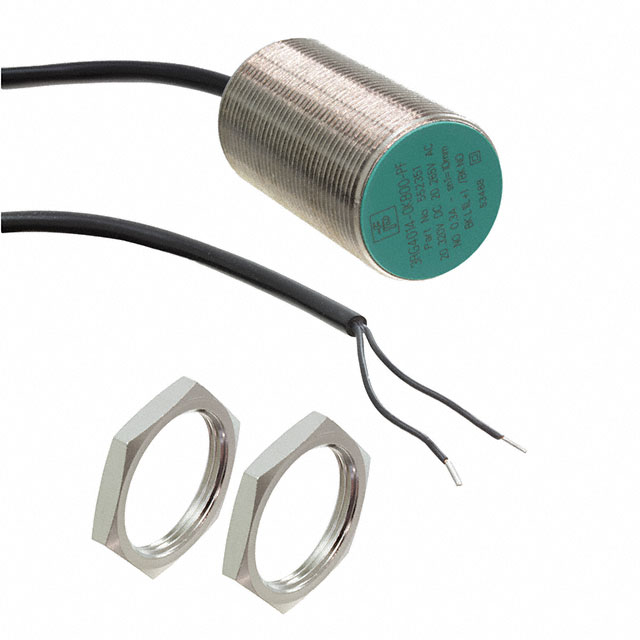

3RG4014-0KB00-PF
ActivePEPPERL+FUCHS
INDUCTIVE SEN 10MM NO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3RG4014-0KB00-PF
ActivePEPPERL+FUCHS
INDUCTIVE SEN 10MM NO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RG4014-0KB00-PF |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Brass |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | SCR-NO, 2-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Response Frequency | 200 Hz |
| Sensing Distance | 0.394 in |
| Sensing Distance | 10 mm |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable |
| Voltage - Supply [Max] | 320 VDC, 265 VAC |
| Voltage - Supply [Min] | 20 VAC, 20 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
3RG4014 Series
INDUCTIVE SEN 10MM NO
