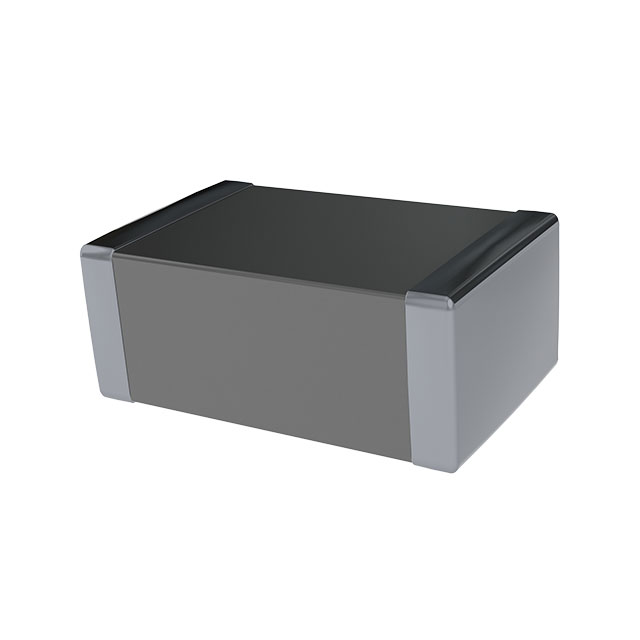

VE2220K501R095

Active

KEMET

VARISTOR 150V 500A 2220

Search across all available documentation for this part.

Active

KEMET

VARISTOR 150V 500A 2220

Technical Specifications

Parameters and characteristics for this part

Part	Maximum DC Volts [Max]	Varistor Voltage (Max) [Max]	Energy	Qualification	Mounting Type	Varistor Voltage (Min) [Min]	Current - Surge	Number of Circuits	Grade	Varistor Voltage (Typ)	Package / Case	Package / Case	Maximum AC Volts [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance @ Frequency
KEMET VE2220K122R011	14 V	19.8 V	5.5 J	AEC-Q200	Surface Mount	16.2 V	1.2 kA	1	Automotive	18 V	5750 Metric	2220	11 V
KEMET VE2220K122R030	38 V	51.7 V	12.2 J	AEC-Q200	Surface Mount	42.3 V	1.2 kA	1	Automotive	47 V	5750 Metric	2220	30 V	-55 °C	150 °C	4000 pF
KEMET VE2220K501R095	125 V	165 V	7.4 J	AEC-Q200	Surface Mount	135 V	500 A	1	Automotive	150 V	5750 Metric	2220	95 V	-55 °C	150 °C	600 pF
KEMET VE2220K801R060	85 V	110 V	6.2 J	AEC-Q200	Surface Mount	90 V	800 A	1	Automotive	100 V	5750 Metric	2220	60 V	-55 °C	150 °C	1000 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	6000	$ 0.72

General part information

150 V 500 A Varistor 1 Circuit Surface Mount 2220 (5750 Metric)
