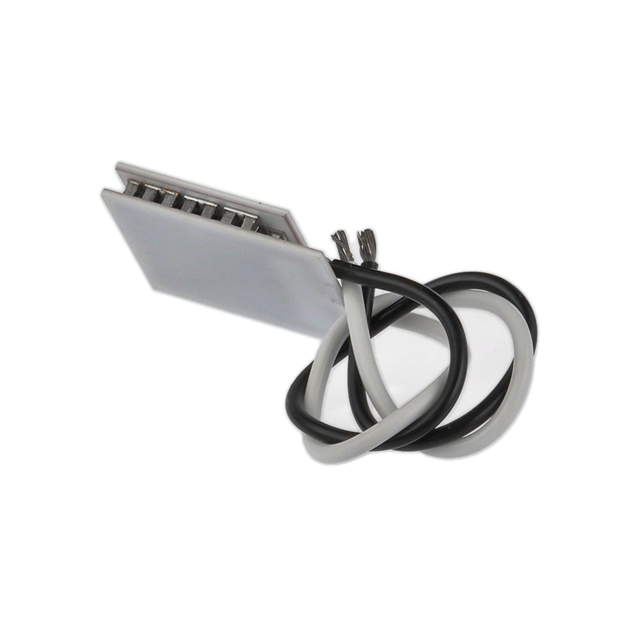

RC3-4-01

Active

Marlow Industries, Inc.

TEM 16X16X3.33MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 16X16X3.33MM

Technical Specifications

Parameters and characteristics for this part

Part	Current - Max [Max]	Delta Tmax @ Th	Number of Stages	Resistance	Operating Temperature	Qmax @ Th	Height [z]	Voltage - Max [Max]	Features	Size / Dimension [x]	Size / Dimension [y]
Marlow Industries, Inc. RC3-4-01L	3.7 A	65 °C	1	0.8 Ohms	130 °C	9 W	3.33 mm	3.6 V	Lapped Lead Wires	20.5 mm	16 mm
Marlow Industries, Inc. RC3-4-01LS	3.7 A	65 °C	1	0.8 Ohms	130 °C	9 W	3.33 mm	3.6 V	Lapped Lead Wires Sealed	20.5 mm	16 mm
Marlow Industries, Inc. RC3-4-01S	3.7 A	65 °C	1	0.8 Ohms	130 °C	9 W	3.43 mm	3.6 V	Lead Wires Sealed	20.5 mm	16 mm
Marlow Industries, Inc. RC3-4-01	3.7 A	65 °C	1	0.8 Ohms	130 °C	9 W	3.43 mm	3.6 V	Lead Wires	20.5 mm	16 mm
Marlow Industries, Inc. RC3-4-03LS	3.7 A	65 °C	1	0.8 Ohms	130 °C	9 W	3.33 mm	3.6 V	Lapped Lead Wires Sealed	20.5 mm	16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 9.0W @ 27°C 3.7 A 130°C
