53806740

Active

LAPP

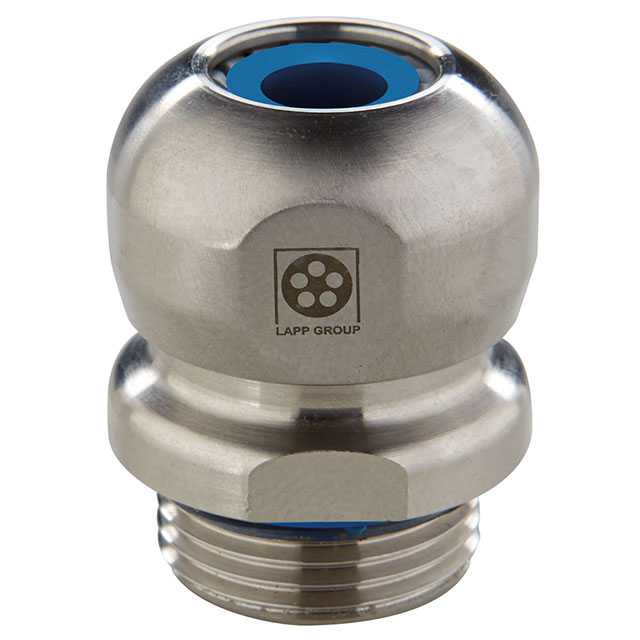

CABLE GLAND, STAINLESS STEEL, M16, INOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

53806740

Active

LAPP

CABLE GLAND, STAINLESS STEEL, M16, INOX

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	53806740

Color	Silver
Includes	O-Ring
Ingress Protection	IP68/IP69 - Dust Tight, Water Resistant, Waterproof
Material	Stainless Steel
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in
Thread Length	7 mm
Thread Length	0.276 in
Thread Size	M16x1.5
Type	Cable Gland

skintop-r Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Material	Ingress Protection	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Thread Length	Thread Length	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Outside Cable Diameter (Min)	Outside Cable Diameter (Max) [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
LAPP 53105302	100 °C	-20 C	M20x1.5	Stainless Steel	IP68 IP69 NEMA 1 NEMA 12 NEMA 2 NEMA 4 NEMA 6	0.355 in	9.02 mm	Silver	8 mm	0.315 in	Cable Gland	0.472 in	12 mm
LAPP 53105200	100 °C	-20 C	M12x1.5	Stainless Steel	IP68 IP69 NEMA 1 NEMA 12 NEMA 2 NEMA 4 NEMA 6	0.118 in	3 mm	Silver	6.5 mm	0.256 in	Cable Gland	0.177 "	4.5 mm
LAPP 53806724	100 °C	-40 °C	M20x1.5	Stainless Steel	IP68 IP69 NEMA 1 NEMA 12 NEMA 2 NEMA 4 NEMA 6	0.276 in		Silver	8 mm	0.315 in	Cable Gland	0.512 in	13 mm	O-Ring	7 mm
LAPP 53806740	100 °C	-40 °C	M16x1.5	Stainless Steel	IP68/IP69 - Dust Tight Water Resistant Waterproof	0.236 in	6 mm	Silver	7 mm	0.276 in	Cable Gland	0.394 "	10 mm	O-Ring
LAPP 53806781	100 °C	-40 °C	3/4 NPT	Stainless Steel	IP68/IP69 - Dust Tight Water Resistant Waterproof; NEMA 1 2 4X 6 12	0.354 in	9 mm	Silver	15 mm	0.591 in	Cable Gland	0.669 in	16.99 mm	O-Ring
LAPP 53806751	100 °C	-40 °C	M20x1.5	Stainless Steel	IP68/IP69 - Dust Tight Water Resistant Waterproof	0.236 in	6 mm	Silver	8 mm	0.315 in	Cable Gland	0.394 "	10 mm	O-Ring
LAPP 53105230	100 °C	-20 C	M25x1.5	Stainless Steel	IP68 IP69 NEMA 1 NEMA 12 NEMA 2 NEMA 4 NEMA 6	0.355 in	9.02 mm	Silver	8 mm	0.315 in	Cable Gland	0.493 in	12.52 mm
LAPP 53105130	100 °C	-20 C	M25x1.5	Stainless Steel	IP68 IP69 NEMA 1 NEMA 12 NEMA 2 NEMA 4 NEMA 6	0.453 "	11.5 mm	Silver	8 mm	0.315 in	Cable Gland	0.611 "	15.52 mm
LAPP 53105303	100 °C	-20 C	M25x1.5	Stainless Steel	IP68 IP69 NEMA 1 NEMA 12 NEMA 2 NEMA 4 NEMA 6	0.453 "	11.5 mm	Silver	8 mm	0.315 in	Cable Gland		0.61 in			15.5 mm
LAPP 53105110	100 °C	-20 C	M16x1.5	Stainless Steel	IP68 IP69 NEMA 1 NEMA 12 NEMA 2 NEMA 4 NEMA 6	0.256 in	6.5 mm	Silver	7 mm	0.276 in	Cable Gland						0.355 in	9.02 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 94.11
		10	$ 86.36
		25	$ 83.04
		50	$ 80.27
		100	$ 75.84
Newark	Each	1	$ 83.84
		5	$ 73.36
		10	$ 71.89
		25	$ 70.43
		50	$ 68.95
		100	$ 67.49

Description

General part information

skintop-r Series

Cable Gland Stainless Steel M16x1.5 Silver
