EM 32-1900

Active

Lascar Electronics

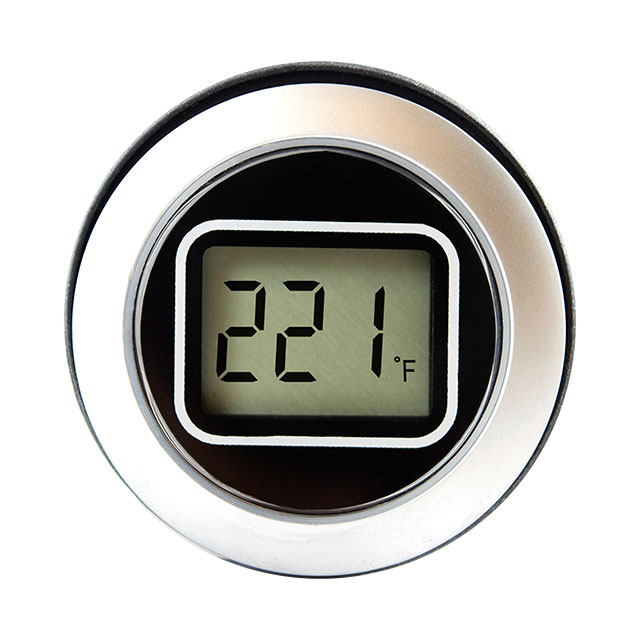

ROUND LCD NTC THERMOMETER

Search across all available documentation for this part.

Active

Lascar Electronics

ROUND LCD NTC THERMOMETER

Technical Specifications

Parameters and characteristics for this part

Specification	EM 32-1900

Display Characters - Height [z]	0.5 in
Display Characters - Height [z]	12.7 mm
Display Type	LCD - Black Characters
Ingress Protection	IP67 - Dust Tight, Waterproof
Measuring Range [Max]	105 °C
Measuring Range [Min]	-40 °C
Measuring Type	Thermister
Number of Characters Per Row	3
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	32.5 mm
Termination Style	PC Pin
Type	Temperature Meter
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	4 V

Part	Panel Cutout Dimensions [diameter]	Number of Characters Per Row	Type	Display Type	Display Characters - Height [y]	Display Characters - Height [y]	Termination Style	Ingress Protection	Measuring Type	Measuring Range [Min]	Measuring Range [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Characters - Height [z]	Display Characters - Height [z]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
Lascar Electronics EM 32-1B	32.5 mm	3.5	Voltmeter	LCD - Black Characters	0.315 in	8 mm	PC Pin	IP67 - Dust Tight Waterproof	Voltage	-200 mV	0.2 VDC	3.5 V	6.5 V
Lascar Electronics EM 32-1900	32.5 mm	3	Temperature Meter	LCD - Black Characters			PC Pin	IP67 - Dust Tight Waterproof	Thermister	-40 °C	105 °C	4 V	28 V	0.5 in	12.7 mm	-10 °C	50 °C
Lascar Electronics EM 32-1B-LED	32.5 mm	3.5	Voltmeter	LCD - Red Characters Backlight	0.315 in	8 mm	PC Pin	IP67 - Dust Tight Waterproof	Voltage	-200 mV	0.2 VDC	4.75 V	5.25 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 95.49

General part information

Temperature Meter LCD - Black Characters Display Panel Mount
