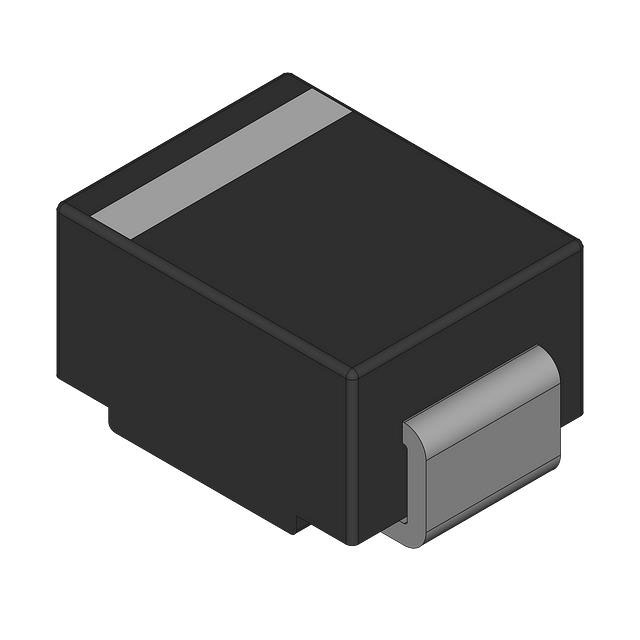

FR3D_R1_00001

Active

Panjit International Inc.

FAST SWITCHING SURFACE MOUNT REC

Search across all available documentation for this part.

Active

Panjit International Inc.

FAST SWITCHING SURFACE MOUNT REC

Technical Specifications

Parameters and characteristics for this part

Specification	FR3D_R1_00001

Capacitance @ Vr, F	60 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-50 °C
Package / Case	SMC, DO-214AB
Reverse Recovery Time (trr)	150 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-214AB (SMC)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1.3 V

Part	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Supplier Device Package	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Mounting Type	Speed	Capacitance @ Vr, F	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Technology
Panjit International Inc. FR3D_R1_00001	1 µA	200 V	DO-214AB SMC	DO-214AB (SMC)	-50 °C	150 °C	Surface Mount	200 mA 500 ns	60 pF	3 A	1.3 V	150 ns	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 200 V 3A Surface Mount DO-214AB (SMC)
