28K1ER-001N3

Active

Rosenberger

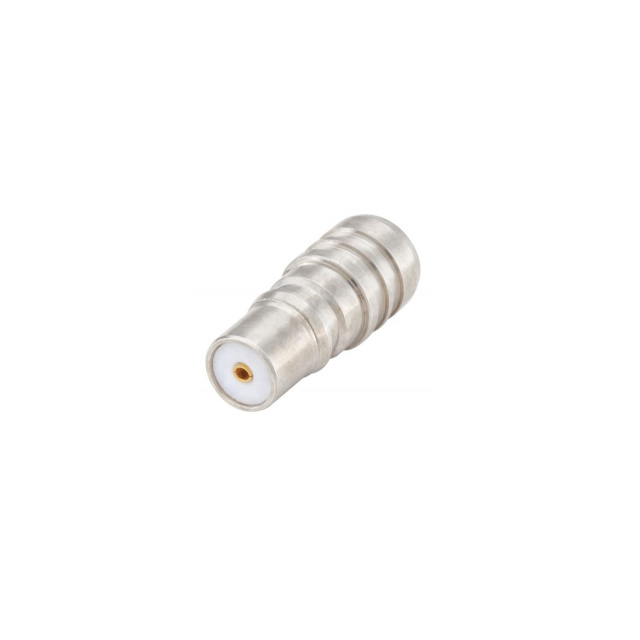

QMA TERMINATOR

Search across all available documentation for this part.

Active

Rosenberger

QMA TERMINATOR

Technical Specifications

Parameters and characteristics for this part

Specification	28K1ER-001N3

Body Finish	White Bronze
Body Material	Brass
Connector Type	Female Socket, Jack
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Contact Finish	Contact Material	Mounting Type	Dielectric Material	Body Finish	Connector Type	Frequency - Max [Max]	Impedance	Body Material
Rosenberger 28K1ER-001N3	Gold	Beryllium Copper	Cap Free Hanging	Polytetrafluoroethylene (PTFE)	White Bronze	Female Socket Jack	12.4 GHz	50 Ohms	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Terminator Coax Connector Jack, Female Socket QMA 50 Ohms
