R28BLK-0100
ActiveOK INDUSTRIES

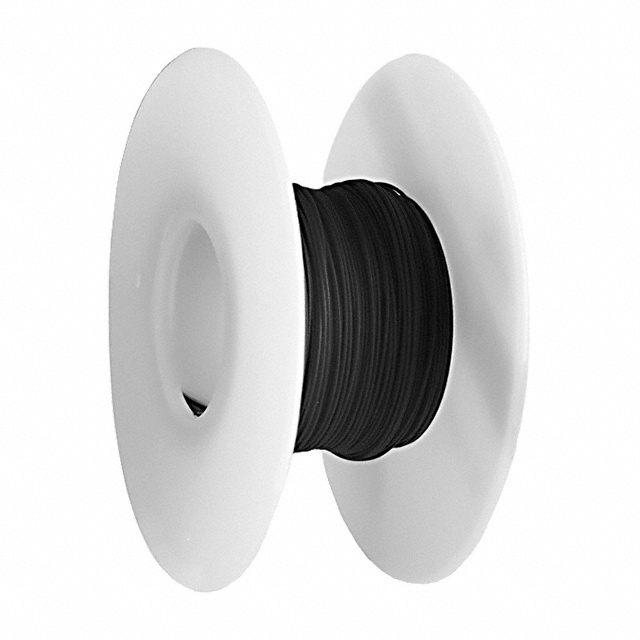

WIRE WW 28AWG PVDF BLACK 100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R28BLK-0100
ActiveOK INDUSTRIES
WIRE WW 28AWG PVDF BLACK 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R28BLK-0100 |
|---|---|
| Conductor Diameter [diameter] | 0.32 mm |
| Conductor Diameter [diameter] | 0.013 in |
| Conductor Material | Copper, Bare |
| Conductor Plating | Silver |
| Jacket (Insulation) Diameter [diameter] | 0.58 mm |
| Jacket (Insulation) Diameter [diameter] | 0.023 in |
| Jacket (Insulation) Material | Polyvinylidene Fluoride (PVDF) |
| Jacket (Insulation) Thickness | 0.005 in |
| Jacket (Insulation) Thickness | 0.13 mm |
| Jacket Color | Black |
| Length | 30.5 m |
| Length [x] | 100 ft |
| Operating Temperature | 105 C |
| Ratings | UL Style 1422 |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Roll | 1 | $ 23.22 | |
| 2 | $ 22.11 | |||
| 3 | $ 21.49 | |||
| 5 | $ 20.72 | |||
| 7 | $ 20.23 | |||
| 10 | $ 19.72 | |||
| 25 | $ 18.95 | |||
Description
General part information
R28B Series
Wire Wrap 28 AWG Black Polyvinylidene Fluoride (PVDF) 100' (30.5m)
