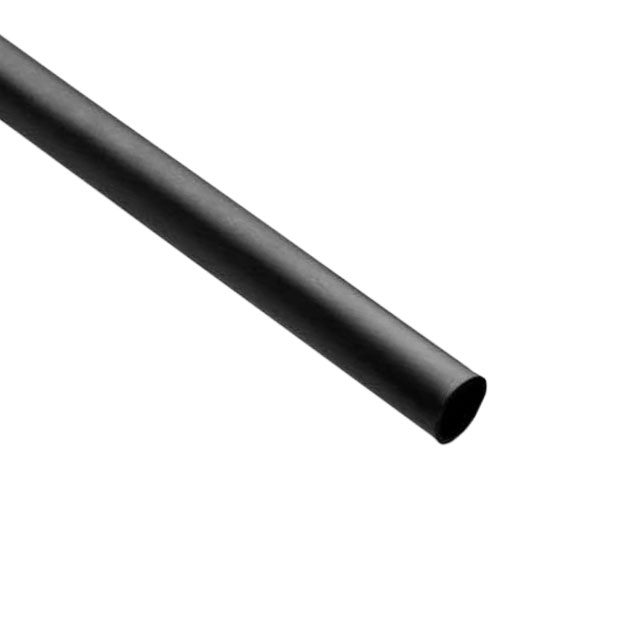

ZH150-5/2.5-0-SP

Unknown

TE Connectivity Aerospace, Defense and Marine

HEATSHRINK .197" X 3.28' 1=1M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ZH150 Test Spec +1

ZH150-5/2.5-0-SP

Unknown

TE Connectivity Aerospace, Defense and Marine

HEATSHRINK .197" X 3.28' 1=1M

Deep-Dive with AI

DocumentsDatasheet ZH150 Test Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZH150-5/2.5-0-SP

Color	Black
Inner Diameter - Supplied [diameter]	5 mm
Inner Diameter - Supplied [diameter]	0.197 "
Length	Enter Number of Meters in Order Quantity
Length	25 m
Length	82 ft
Length [x]	16.4 ft, 3.28 ft
Length [x]	5 m, 1 m
Material	Zerohal™
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-103 °F
Recovered Wall Thickness	0.76 mm
Recovered Wall Thickness	0.03 "
Shrink Temperature	150 °C
Shrinkage Ratio	2 to 1
Spool Size	196.8 '
Spool Size	60 m
Type	Tubing, Flexible

ZH150 Series

Part	Length [x]	Length [x]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Spool Size	Spool Size	Shrinkage Ratio	Length	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Recovered Wall Thickness	Recovered Wall Thickness	Type	Shrink Temperature	Material	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Length	Length	Recovered Wall Thickness	Inner Diameter - Recovered	Inner Diameter - Recovered
TE Connectivity Aerospace, Defense and Marine ZH150-50/30-0-SP	16.4 ft	5 m	50 mm	1.969 in	98.4 ft	30 m	2 to 1	Enter Number of Meters in Order Quantity	30 mm	1.181 in	Black	1.5 mm	0.059 in	Tubing Flexible	150 °C	Zerohal™	-103 °F	150 °C
TE Connectivity Aerospace, Defense and Marine ZH150-40/20-0-SP	3.28 ft 16.4 ft	1 m 5 m	1.575 "		98.4 ft	30 m	2 to 1	Enter Number of Meters in Order Quantity	0.789 in		Black	1.3 mm	0.051 in	Tubing Flexible	150 °C	Zerohal™	-103 °F	150 °C	20.04 mm	40.01 mm
TE Connectivity Aerospace, Defense and Marine ZH150-5/2.5-0-SP	3.28 ft 16.4 ft	1 m 5 m	5 mm	0.197 "	196.8 '	60 m	2 to 1	Enter Number of Meters in Order Quantity			Black	0.76 mm		Tubing Flexible	150 °C	Zerohal™	-103 °F	150 °C			0.03 "	25 m	82 ft
TE Connectivity Aerospace, Defense and Marine ZH150-8/4-0-SP	3.28 ft 16.4 ft	1 m 5 m	0.315 in		196.8 '	60 m	2 to 1	Enter Number of Meters in Order Quantity	3.99 mm	0.157 in	Black	0.79 mm	0.031 "	Tubing Flexible	150 °C	Zerohal™	-103 °F	150 °C		8 mm		25 m 60 m	82 ft 196.8 ft
TE Connectivity Aerospace, Defense and Marine ZH150-24/12-0-SP	3.28 ft 16.4 ft	1 m 5 m	24 mm	0.945 "			2 to 1		12 mm	0.472 in	Black	0.043 in		Tubing Flexible	150 °C	Zerohal™	-103 °F	150 °C						1.09 mm
TE Connectivity Aerospace, Defense and Marine ZH150-12/6-0-SP	3.28 ft 98.4 ft	1 m 30 m	11.99 mm	0.472 in	98.4 ft	30 m	2 to 1	Enter Number of Meters in Order Quantity			Black	0.89 mm	0.035 in	Tubing Flexible	150 °C	Zerohal™	-103 °F	150 °C							5.99 mm	0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 53.21
		1	$ 14.79
		1	$ 232.27
	Digi-Spool®, Continuous Spool	1	$ 18.01
		2	$ 16.57
		3	$ 15.77
		5	$ 14.83
		7	$ 14.24
		10	$ 13.64
		25	$ 12.21
		50	$ 11.23
		100	$ 10.38

Description

General part information

ZH150 Series

Heat Shrink Tubing, Flexible 0.197" (5.00mm) 2 to 1 Black 3.28' (1.00m)

Documents

Technical documentation and resources

Datasheet

ZH150 Test Spec

Datasheet
