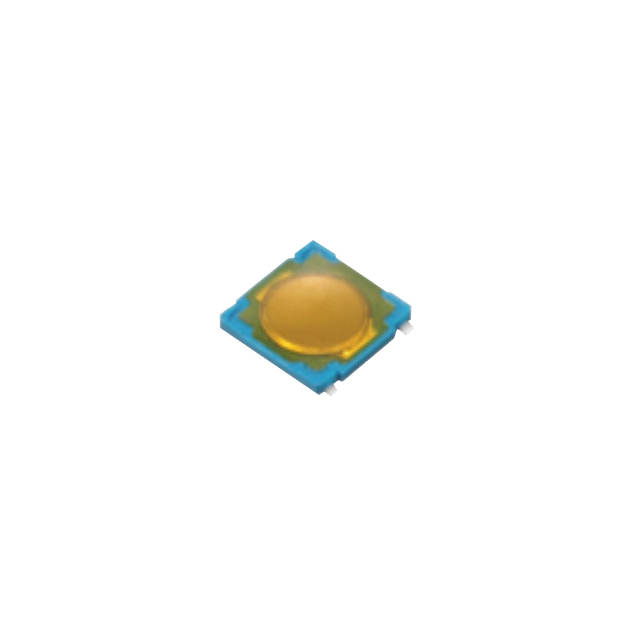

223BM1VABR

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	223BM1VABR

Actuator Height off PCB, Vertical [z]	0.55 mm
Actuator Orientation	Top Actuated
Actuator Type	Snap Dome
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Mechanical Life	200000 Cycles
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	4.5 mm
Outline [y]	4.5 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	Gull Wing

Part	Actuator Orientation	Illumination	Outline [x]	Outline [y]	Mounting Type	Switch Function	Switch Travel	Mechanical Life	Features	Actuator Type	Operating Force	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Termination Style
Tusonix a Subsidiary of CTS Electronic Components 223BM1VABR	Top Actuated	Non-Illuminated	4.5 mm	4.5 mm	Surface Mount	Off-Mom	0.2 mm	200000 Cycles	Tactile Feedback	Snap Dome	260 gf	0.55 mm	0.05 A 12 VDC	85 °C	-40 °C	SPST-NO	Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	14000	$ 0.11

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
