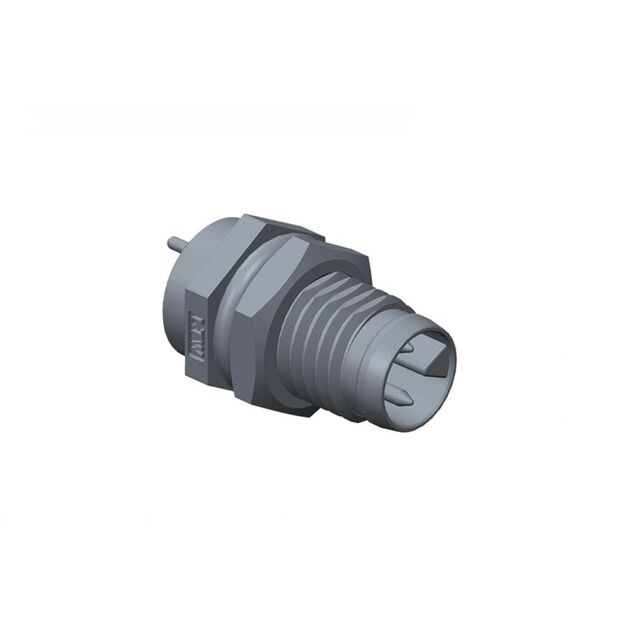

8A-02PMMS-SF7001

Active

Amphenol LTW

M8 CONN WITH KEY

Search across all available documentation for this part.

Active

Amphenol LTW

M8 CONN WITH KEY

Technical Specifications

Parameters and characteristics for this part

Specification	8A-02PMMS-SF7001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M8-2
Shielding	Shielded
Voltage Rating	60 VDC

Part	Shell Finish	Mounting Feature	Connector Type	Ingress Protection	Primary Material	Material Flammability Rating	Orientation	Shell Material	Shielding	Insert Material	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating	Contact Finish - Mating	Color	Number of Positions	Contact Material
Amphenol LTW 8A-02PMMS-SF7001	Nickel	Bulkhead - Front Side Nut	Male Pins Receptacle	IP67 - Dust Tight Waterproof	Metal	UL94 V-0	Keyed	Zinc Alloy	Shielded	Polyamide (PA) Nylon Glass Filled	M8-2	-40 °C	105 ░C	3 A	60 VDC	Gold	Silver	2	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Solder Cup
