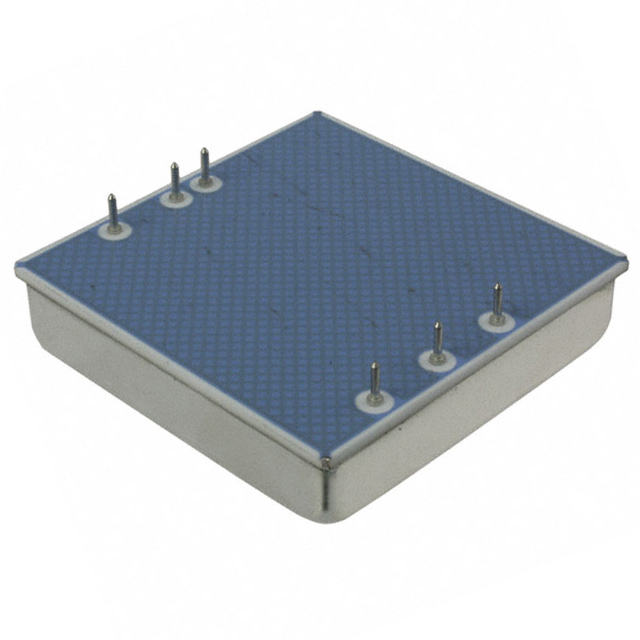

UHR-30184
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 5V 20W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UHR-30184
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 5V 20W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UHR-30184 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 4 A |
| Efficiency | 80 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 203 °F |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 52.3 mm |
| Size / Dimension [x] | 2.06 in |
| Size / Dimension [y] | 52.3 mm |
| Size / Dimension [y] | 2.06 in |
| Size / Dimension [z] | 0.46 in |
| Size / Dimension [z] | 11.7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
UHR-301 Series
Isolated Module DC DC Converter 1 Output 5V 4A 9V - 36V Input
