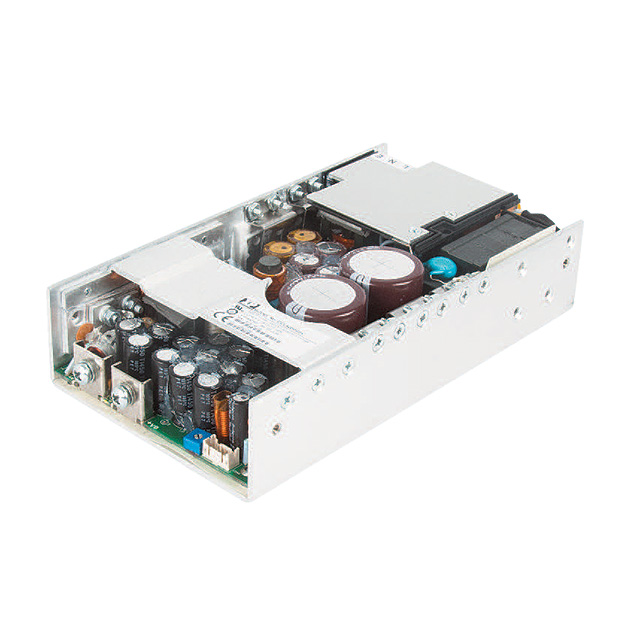

CCL400PS48
ActiveAC/DC OPEN FRAME POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUT, 400 W, 85V AC TO 264V AC
Deep-Dive with AI
Search across all available documentation for this part.
CCL400PS48
ActiveAC/DC OPEN FRAME POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUT, 400 W, 85V AC TO 264V AC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CCL400PS48 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CE, TUV, UL |
| Current - Output 1 | 8.3 A |
| Efficiency | 94 % |
| Features | Standby Output, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 398 W |
| Size / Dimension [x] | 7 " |
| Size / Dimension [x] | 177.8 mm |
| Size / Dimension [y] | 100.3 mm |
| Size / Dimension [y] | 3.95 in |
| Size / Dimension [z] | 39.9 mm |
| Size / Dimension [z] | 1.57 " |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CCL400 Series
The universal AC input CCL400 provides 400W of convection cooled output power over the temperature range -40°C to 50°C with derating to 70°C. The temperature range can be extended by the use of conduction cooling to the full 400W at 70°C. Approved for IT and Medical and with a feature set including a 5V standby output,
