Technical Specifications
Parameters and characteristics for this part
| Specification | SBCHE1122RJ |
|---|---|
| Composition | Wirewound |
| Features | Flame Proof, Safety |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 350 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial Formed, Axial |
| Power (Watts) | 11 W |
| Resistance | 22 Ohms |
| Size / Dimension [x] | 0.394 in, 10 mm |
| Size / Dimension [y] | 0.354 ", 9 mm |
| Size / Dimension [z] | 50 mm, 1.969 " |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.06 | |
| 10 | $ 0.89 | |||
| 25 | $ 0.86 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.64 | |||
| 300 | $ 0.57 | |||
| 500 | $ 0.53 | |||
Description
General part information
SBCHE11 Series

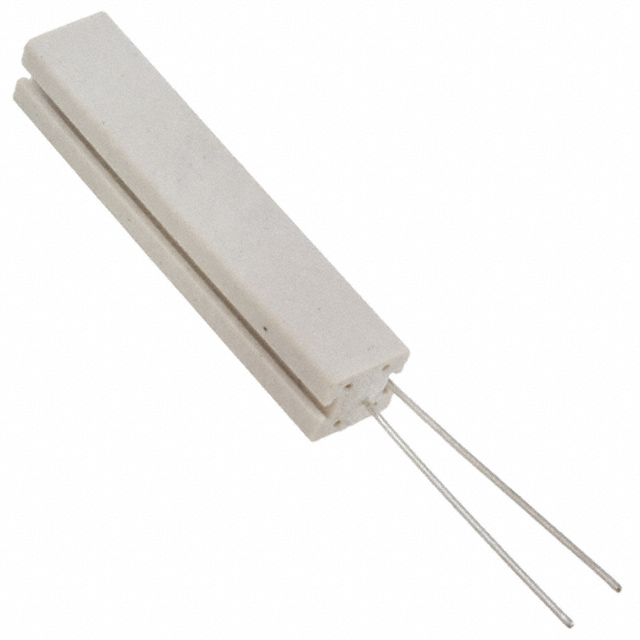

22 Ohms ±5% 11W Through Hole Resistor Axial, Radial Formed Flame Proof, Safety Wirewound
