G800MJ302018EU
ActiveAmphenol ICC (Commercial Products)

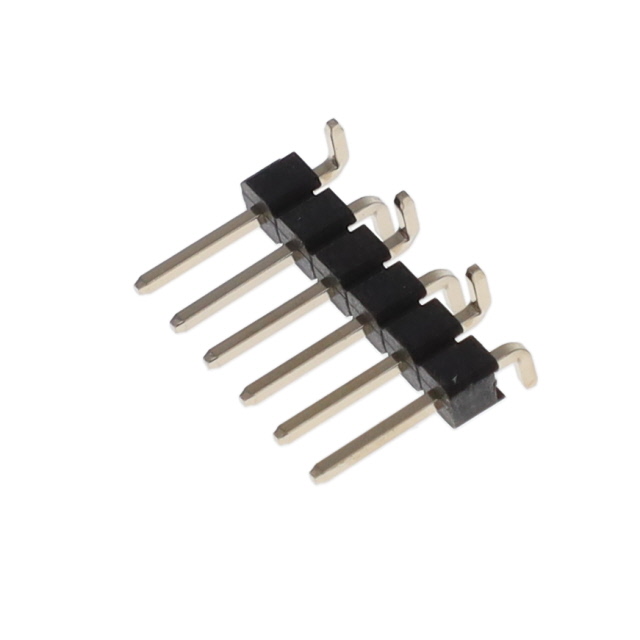

PIN HEADER 2.54MM PITCH STR SMT,
Deep-Dive with AI
Search across all available documentation for this part.
G800MJ302018EU
ActiveAmphenol ICC (Commercial Products)
PIN HEADER 2.54MM PITCH STR SMT,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G800MJ302018EU |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 6 mm |
| Contact Length - Mating | 0.236 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Features | Pick and Place |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
G800MJ3 Series
| Part | Contact Finish Thickness - Post | Number of Positions | Insulation Height | Insulation Height | Contact Shape | Insulation Color | Features | Insulation Material | Current Rating (Amps) | Termination | Material Flammability Rating | Contact Length - Mating | Contact Length - Mating | Shrouding | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Type | Contact Material | Number of Rows | Connector Type | Pitch - Mating | Pitch - Mating | Mounting Type | Number of Positions Loaded | Fastening Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | Flash | 6 | 0.1 in | 2.54 mm | Square | Black | Pick and Place | Nylon 6T Polyamide (PA6T) | 3 A | Solder | UL94 V-0 | 6 mm | 0.236 in | Unshrouded | Gold | -25 °C | 105 ░C | Flash | Male Pin | Brass | 1 | Header | 0.1 in | 2.54 mm | Surface Mount | All | Push-Pull | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.80 | |
| 10 | $ 0.67 | |||
| 100 | $ 0.61 | |||
| Digi-Reel® | 1 | $ 0.80 | ||
| 10 | $ 0.67 | |||
| 100 | $ 0.61 | |||
| Tape & Reel (TR) | 300 | $ 0.55 | ||
| 600 | $ 0.50 | |||
| 900 | $ 0.48 | |||
| 1500 | $ 0.41 | |||
| 3000 | $ 0.40 | |||
| 7500 | $ 0.39 | |||
| 15000 | $ 0.36 | |||
Description
General part information
G800MJ3 Series
Connector Header Surface Mount 6 position 0.100" (2.54mm)
Documents
Technical documentation and resources
No documents available
