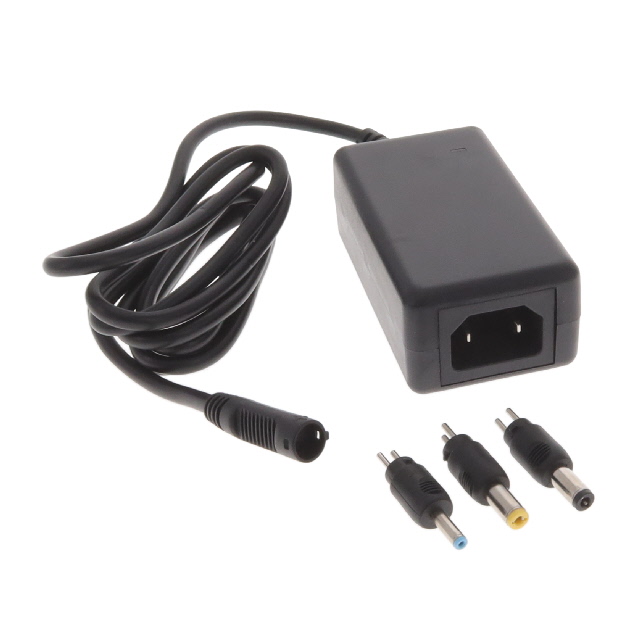

TR9WX375T00-IMR6B
ActiveGlobTek, Inc.
AC/DC DESKTOP ADAPTER 48V 18W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TR9WX375T00-IMR6B
ActiveGlobTek, Inc.
AC/DC DESKTOP ADAPTER 48V 18W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TR9WX375T00-IMR6B |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | S-Mark, UL, FCC, LPS, VCCI, ETL, CCC, RCM, EAC, CE, CB, UKRSepro, PSE, cETLus |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 375 mA |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C18 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Output Connector | Barrel Plug Kit, 1.3mm x 3.5mm |
| Polarization | Either |
| Power (Watts) | 18 W |
| Region Utilized | International |
| Size / Dimension [x] | 87 mm |
| Size / Dimension [x] | 3.43 in |
| Size / Dimension [y] | 1.83 in |
| Size / Dimension [y] | 46.5 mm |
| Size / Dimension [z] | 1.26 in |
| Size / Dimension [z] | 32 mm |
| Standard Number | 60601-1-2, 61558-1, 60335-1, 60601-1-11, 1310, 60950-1, 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.10 | |
| 5 | $ 11.61 | |||
| 10 | $ 11.41 | |||
| 25 | $ 11.15 | |||
| 50 | $ 10.95 | |||
| 100 | $ 10.76 | |||
| 250 | $ 10.52 | |||
| 500 | $ 10.33 | |||
Description
General part information
TR9WX375 Series
48V 18 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
