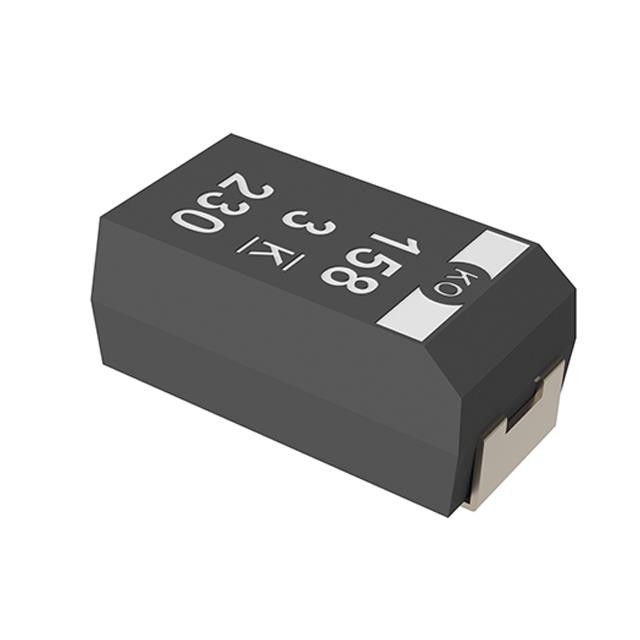

T530D157M010AHE005
ActiveKEMET
TANTALUM CAPACITOR, POLARIZED, TANTALUM (SOLID POLYMER), 10V, 20% +TOL, 20% -TOL, 150UF, SURFACE MOUNT, 2917, CHIP
Deep-Dive with AI
Search across all available documentation for this part.
T530D157M010AHE005
ActiveKEMET
TANTALUM CAPACITOR, POLARIZED, TANTALUM (SOLID POLYMER), 10V, 20% +TOL, 20% -TOL, 150UF, SURFACE MOUNT, 2917, CHIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T530D157M010AHE005 |
|---|---|
| Capacitance | 150 µF |
| ESR (Equivalent Series Resistance) | 5 mOhm |
| Features | General Purpose |
| Height - Seated (Max) [Max] [z] | 0.122 " |
| Height - Seated (Max) [Max] [z] | 3.1 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Manufacturer Size Code | D |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 7343 Metric |
| Package / Case | 2917 |
| Size / Dimension [x] | 0.287 " |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 4.3 mm |
| Size / Dimension [y] | 0.169 " |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 10 V |
T530D Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Package / Case | Package / Case | Lifetime @ Temp. | Voltage - Rated | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Capacitance | ESR (Equivalent Series Resistance) | Features | Type | Manufacturer Size Code | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KEMET | -55 °C | 125 °C | 20 % | 7343 Metric | 2917 | 2000 Hrs | 10 V | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.122 " | 3.1 mm | 150 µF | 6 mOhm | General Purpose | Molded | D | Surface Mount |
KEMET | -55 °C | 125 °C | 20 % | 7343 Metric | 2917 | 2000 Hrs | 2.5 V | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.122 " | 3.1 mm | 680 µF | 10 mOhm | General Purpose | Molded | D | Surface Mount |
KEMET | -55 °C | 125 °C | 20 % | 7343 Metric | 2917 | 2000 Hrs | 6.3 V | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.122 " | 3.1 mm | 220 µF | 5 mOhm | General Purpose | Molded | D | Surface Mount |
KEMET | -55 °C | 125 °C | 20 % | 7343 Metric | 2917 | 2000 Hrs | 10 V | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.122 " | 3.1 mm | 150 µF | 10 mOhm | General Purpose | Molded | D | Surface Mount |
KEMET | -55 °C | 125 °C | 20 % | 7343 Metric | 2917 | 2000 Hrs | 10 V | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.122 " | 3.1 mm | 150 µF | 5 mOhm | General Purpose | Molded | D | Surface Mount |
KEMET | -55 °C | 125 °C | 20 % | 7343 Metric | 2917 | 2000 Hrs | 3 VDC | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.122 " | 3.1 mm | 680 µF | 10 mOhm | General Purpose | Molded | D | Surface Mount |
KEMET | -55 °C | 125 °C | 20 % | 7343 Metric | 2917 | 2000 Hrs | 10 V | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.122 " | 3.1 mm | 220 µF | 6 mOhm | General Purpose | Molded | D | Surface Mount |
KEMET | -55 °C | 125 °C | 20 % | 7343 Metric | 2917 | 2000 Hrs | 2.5 V | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.122 " | 3.1 mm | 470 µF | 5 mOhm | General Purpose | Molded | D | Surface Mount |
KEMET | -55 °C | 125 °C | 20 % | 7343 Metric | 2917 | 2000 Hrs | 10 V | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.122 " | 3.1 mm | 220 µF | 6 mOhm | General Purpose | Molded | D | Surface Mount |
KEMET | -55 °C | 125 °C | 20 % | 7343 Metric | 2917 | 2000 Hrs | 6.3 V | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.122 " | 3.1 mm | 220 µF | 5 mOhm | General Purpose | Molded | D | Surface Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
T530D Series
150 µF Molded Tantalum Polymer Capacitor 10 V 2917 (7343 Metric) 5mOhm @ 100kHz
