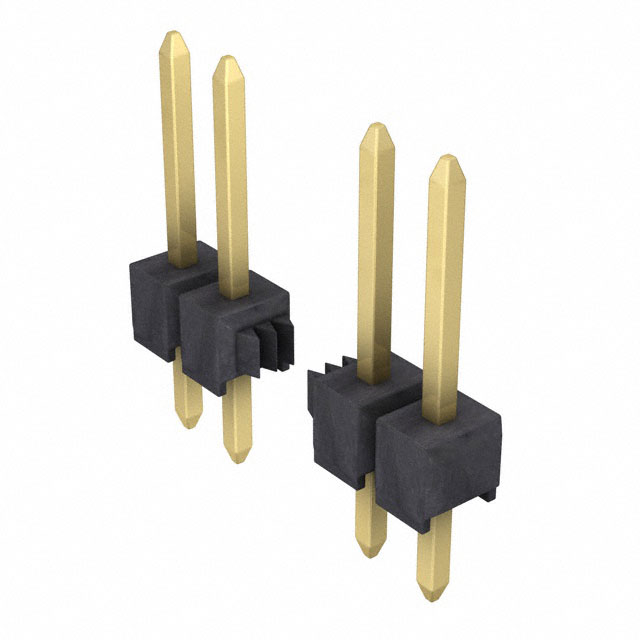

M20-9731145

Active

Harwin Inc.

BOARD CONNECTOR, 11 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20-003 M20 Series Spec Sheet +1

M20-9731145

Active

Harwin Inc.

BOARD CONNECTOR, 11 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE, ROHS COMPLIANT

Deep-Dive with AI

DocumentsM20-003 M20 Series Spec Sheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-9731145

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Length - Mating	7 mm
Contact Length - Mating	0.276 in
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	16.54 mm, 10.04 mm, 10.64 mm, 11.04 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.496 in
Overall Contact Length	12.6 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

M20-973 Series

Part	Style	Number of Rows	Termination	Insulation Color	Fastening Type	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Material	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Material	Pitch - Mating	Pitch - Mating	Shrouding	Mated Stacking Heights	Connector Type	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Shape	Contact Type	Contact Finish - Mating	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Number of Positions	Contact Finish - Post
Harwin Inc. M20-9730345	Board to Board Cable	1	Solder	Black	Push-Pull	7 mm	0.276 in	0.1 in	2.54 mm	Brass	0.122 "	3.1 mm	-40 °C	105 ░C	All	Nylon 6T Polyamide (PA6T)	0.1 in	2.54 mm	Unshrouded	10.04 mm 10.64 mm 11.04 mm 16.54 mm	Cuttable Header	0.496 in	12.6 mm	Through Hole	Square	Male Pin	Gold	UL94 V-0	3 A
Harwin Inc. M20-9730645	Board to Board Cable	1	Solder	Black	Push-Pull	7 mm	0.276 in	0.1 in	2.54 mm	Brass	0.122 "	3.1 mm	-40 °C	105 ░C	All	Nylon 6T Polyamide (PA6T)	0.1 in	2.54 mm	Unshrouded	10.04 mm 10.64 mm 11.04 mm 16.54 mm	Cuttable Header	0.496 in	12.6 mm	Through Hole	Square	Male Pin	Gold	UL94 V-0	3 A	6
Harwin Inc. M20-9731645	Board to Board Cable	1	Solder	Black	Push-Pull	7 mm	0.276 in	0.1 in	2.54 mm	Brass	0.122 "	3.1 mm	-40 °C	105 ░C	All	Nylon 6T Polyamide (PA6T)	0.1 in	2.54 mm	Unshrouded	10.04 mm 10.64 mm 11.04 mm 16.54 mm	Cuttable Header	0.496 in	12.6 mm	Through Hole	Square	Male Pin	Gold	UL94 V-0	3 A		16
Harwin Inc. M20-9731045	Board to Board Cable	1	Solder	Black	Push-Pull	7 mm	0.276 in	0.1 in	2.54 mm	Brass	0.122 "	3.1 mm	-40 °C	105 ░C	All	Nylon 6T Polyamide (PA6T)	0.1 in	2.54 mm	Unshrouded	10.04 mm 10.64 mm 11.04 mm 16.54 mm	Cuttable Header	0.496 in	12.6 mm	Through Hole	Square	Male Pin	Gold	UL94 V-0	3 A	10
Harwin Inc. M20-9731646	Board to Board Cable	1	Solder	Black	Push-Pull	7 mm	0.276 in	0.1 in	2.54 mm	Brass	0.122 "	3.1 mm	-40 °C	105 ░C	All	Nylon 6T Polyamide (PA6T)	0.1 in	2.54 mm	Unshrouded	10.04 mm 10.64 mm 11.04 mm 16.54 mm	Cuttable Header	0.496 in	12.6 mm	Through Hole	Square	Male Pin		UL94 V-0	3 A		16	Tin
Harwin Inc. M20-9730946	Board to Board Cable	1	Solder	Black	Push-Pull	7 mm	0.276 in	0.1 in	2.54 mm	Brass	0.122 "	3.1 mm	-40 °C	105 ░C	All	Nylon 6T Polyamide (PA6T)	0.1 in	2.54 mm	Unshrouded	10.04 mm 10.64 mm 11.04 mm 16.54 mm	Cuttable Header	0.496 in	12.6 mm	Through Hole	Square	Male Pin		UL94 V-0	3 A	9		Tin
Harwin Inc. M20-9731145	Board to Board Cable	1	Solder	Black	Push-Pull	7 mm	0.276 in	0.1 in	2.54 mm	Brass	0.122 "	3.1 mm	-40 °C	105 ░C	All	Nylon 6T Polyamide (PA6T)	0.1 in	2.54 mm	Unshrouded	10.04 mm 10.64 mm 11.04 mm 16.54 mm	Cuttable Header	0.496 in	12.6 mm	Through Hole	Square	Male Pin	Gold	UL94 V-0	3 A	11
Harwin Inc. M20-9730446	Board to Board Cable	1	Solder	Black	Push-Pull	7 mm	0.276 in	0.1 in	2.54 mm	Brass	0.122 "	3.1 mm	-40 °C	105 ░C	All	Nylon 6T Polyamide (PA6T)	0.1 in	2.54 mm	Unshrouded	10.04 mm 10.64 mm 11.04 mm 16.54 mm	Cuttable Header	0.496 in	12.6 mm	Through Hole	Square	Male Pin		UL94 V-0	3 A	4		Tin
Harwin Inc. M20-9730245	Board to Board Cable	1	Solder	Black	Push-Pull	7 mm	0.276 in	0.1 in	2.54 mm	Brass	0.122 "	3.1 mm	-40 °C	105 ░C	All	Nylon 6T Polyamide (PA6T)	0.1 in	2.54 mm	Unshrouded	10.04 mm 10.64 mm 11.04 mm 16.54 mm	Cuttable Header	0.496 in	12.6 mm	Through Hole	Square	Male Pin	Gold	UL94 V-0	3 A	2
Harwin Inc. M20-9730445	Board to Board Cable	1	Solder	Black	Push-Pull	7 mm	0.276 in	0.1 in	2.54 mm	Brass	0.122 "	3.1 mm	-40 °C	105 ░C	All	Nylon 6T Polyamide (PA6T)	0.1 in	2.54 mm	Unshrouded	10.04 mm 10.64 mm 11.04 mm 16.54 mm	Cuttable Header	0.496 in	12.6 mm	Through Hole	Square	Male Pin	Gold	UL94 V-0	3 A	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.35
Newark	Each	1000	$ 0.35

Description

General part information

M20-973 Series

Connector Header Through Hole 11 position 0.100" (2.54mm)

Documents

Technical documentation and resources

M20-003

M20 Series Spec Sheet

Datasheet
