Technical Specifications
Parameters and characteristics for this part
| Specification | 1869130 |
|---|---|
| Color | Green |
| Current | 10 A |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | 125 ° |
| Mating Orientation | 55 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 9 |
| Screw Thread | M3 |
| Torque - Screw [Max] | 0.6 Nm |
| Torque - Screw [Max] | 5.3 Lb-In |
| Torque - Screw [Min] | 4.4 Lb-In |
| Torque - Screw [Min] | 0.5 Nm |
| Voltage | 300 V |
| Wire Gauge [Max] | 30 AWG |
| Wire Gauge [Min] | 14 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SMKDSN Series

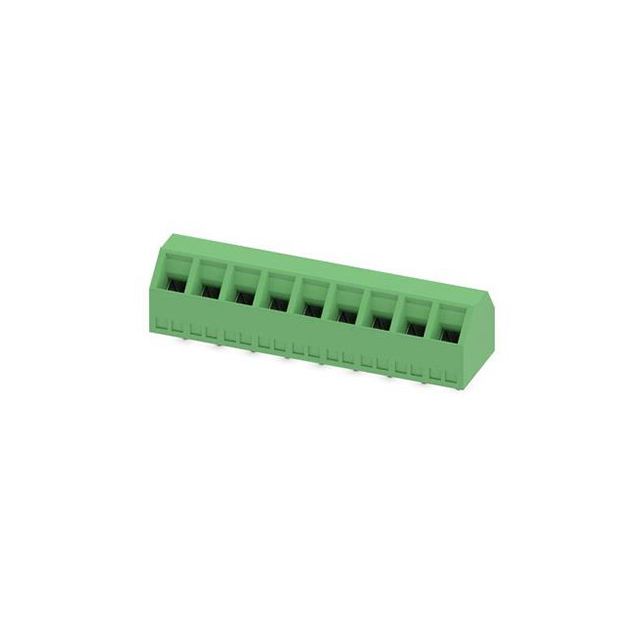

Fixed Terminal Blocks SMKDSN 1.5/ 9
