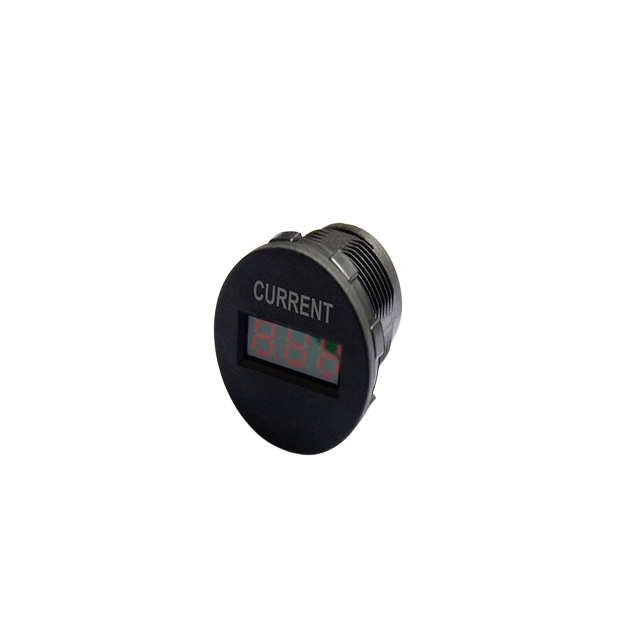

A1-A1-1-B
ActiveSwitch Components
LED DIGITAL AMP METER, 0-20A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A1-A1-1-B
ActiveSwitch Components
LED DIGITAL AMP METER, 0-20A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A1-A1-1-B |
|---|---|
| Display Type | LED - Red Characters |
| Measuring Range [Max] | 20 A |
| Measuring Range [Min] | 0 A |
| Measuring Type | Current |
| Number of Characters Per Row | 3 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Type | Ammeter |
| Voltage - Supply [Max] | 33 V |
| Voltage - Supply [Min] | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 67.27 | |
| 10 | $ 61.88 | |||
| 25 | $ 56.43 | |||
| 50 | $ 49.38 | |||
| 100 | $ 45.73 | |||
| 250 | $ 42.05 | |||
| 500 | $ 38.60 | |||
| 1000 | $ 35.54 | |||
Description
General part information
A1-A1-1 Series
Ammeter LED - Red Characters Display Panel Mount
Documents
Technical documentation and resources
