SMS9PH-3TR29

Active

Souriau-Sunbank by Eaton

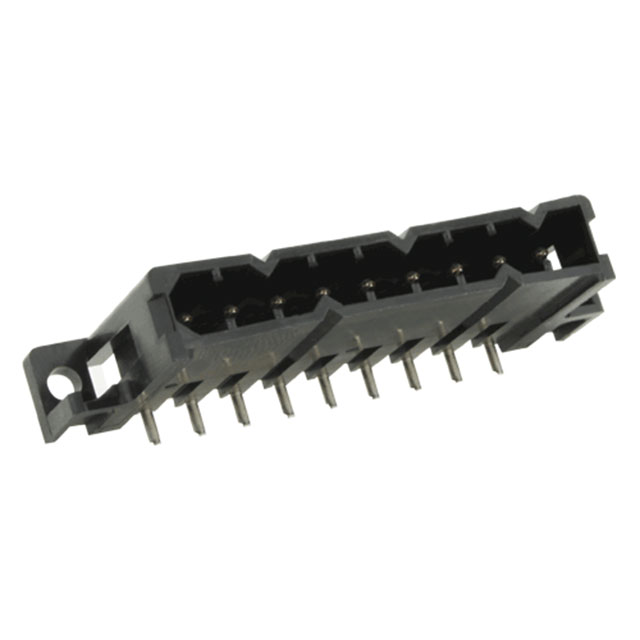

CONN HEADER R/A 9POS 5.08MM

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN HEADER R/A 9POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	SMS9PH-3TR29

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1.2 µm
Contact Finish Thickness - Mating	47.2 µin
Contact Length - Post [x]	0.165 in
Contact Length - Post [x]	4.19 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Features	Mounting Flange
Insulation Color	Black
Insulation Height	0.37 in
Insulation Height	9.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Termination	Contact Material	Connector Type	Style	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Current Rating (Amps)	Number of Positions	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Fastening Type	Shrouding	Contact Finish - Post	Features	Material Flammability Rating	Contact Finish - Mating	Contact Finish Thickness - Mating
Souriau-Sunbank by Eaton SMS9PH-3TR29	Solder	Copper Alloy	Header	Board to Cable/Wire	0.37 in	9.4 mm	5.08 mm	0.2 in	1	Male Pin	Through Hole Right Angle	-55 °C	125 °C	Circular	5 A	9	All	0.165 in	4.19 mm	1.2 µm	47.2 µin	Black	Push-Pull	Shrouded - 4 Wall	Tin	Mounting Flange	UL94 V-0
Souriau-Sunbank by Eaton SMS9PHGE4	Solder	Copper Alloy	Header	Board to Cable/Wire	0.37 in	9.4 mm	5.08 mm	0.2 in	1	Male Pin	Through Hole	-55 °C	125 °C	Circular	7.5 A	9	All	0.165 in	4.19 mm		0.41 Ám	Black	Push-Pull	Shrouded - 4 Wall		Mounting Flange	UL94 V-0	Gold	16 Áin
