CD631615B

Obsolete

Powerex Inc.

150MA 150MA 1.6KV 2 UNIDIRECTIONAL THYRISTORS THYRISTORS (SCR)/MODULES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSCR Module Selection Guide Datasheet

CD631615B

Obsolete

Powerex Inc.

150MA 150MA 1.6KV 2 UNIDIRECTIONAL THYRISTORS THYRISTORS (SCR)/MODULES ROHS

Deep-Dive with AI

DocumentsSCR Module Selection Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CD631615B

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Hold (Ih) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	5000 A, 5250 A
Current - On State (It (AV)) (Max) [Max]	160 A
Current - On State (It (RMS)) (Max)	235 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	POW-R-BLOK™ Module
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	1.6 kV

CD631615 Series

Part	Package / Case	Voltage - Off State	Number of SCRs, Diodes	Operating Temperature [Min]	Operating Temperature [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - On State (It (RMS)) (Max)	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - On State (It (AV)) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Structure
Powerex Inc. CD631615B	POW-R-BLOK™ Module	1.6 kV	2 SCRs	-40 °C	125 ¯C	150 mA	150 mA	235 A	Chassis Mount	5000 A 5250 A	160 A	2 V	Series Connection - All SCRs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	Piece	1	$ 172.34
		200	$ 68.76
		500	$ 66.47
		1000	$ 65.33
Newark	Each	1	$ 64.63

Description

General part information

CD631615 Series

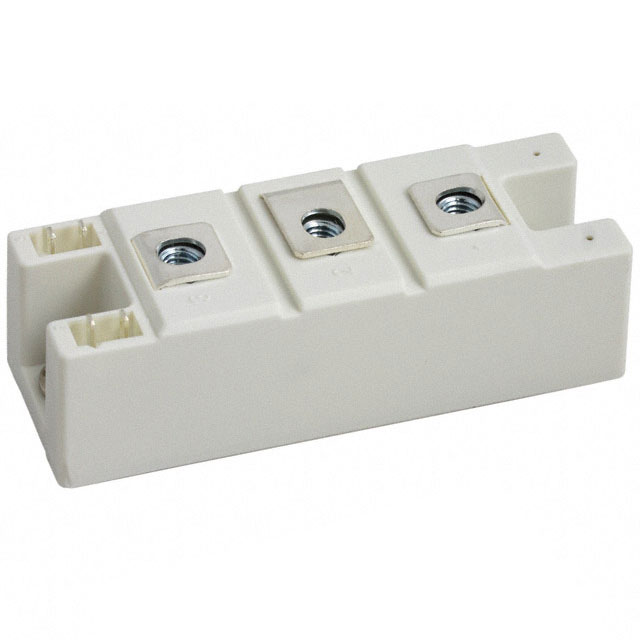

The CD631615B is a 7-pin dual SCR Isolated Module for use in applications requiring phase control and has DBC alumina insulator. The POW-R-BLOKTM module is isolated for easy mounting with other components on a common heat sink and quick connect gate terminal with provision for Keyed mating plug.
