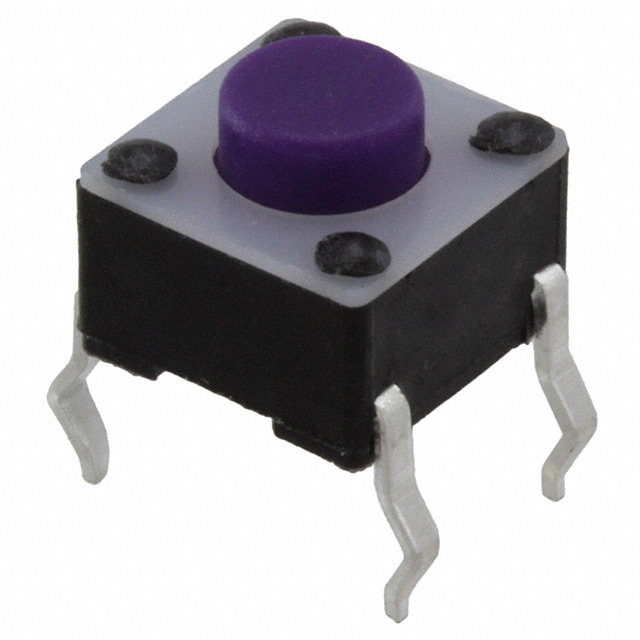

LL1105AF065Q

Active

E-Switch

MICROSWITCH TACT; SPST; POS: 2; 0.05A/12VDC; SMD; OFF-(ON); ROUND

Search across all available documentation for this part.

Active

E-Switch

MICROSWITCH TACT; SPST; POS: 2; 0.05A/12VDC; SMD; OFF-(ON); ROUND

Technical Specifications

Parameters and characteristics for this part

Specification	LL1105AF065Q

Actuator Height off PCB, Vertical	5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	5000000 Cycles
Mounting Type	Through Hole
Operating Force	65 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Switch Function	Operating Force	Actuator Type	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Travel	Mechanical Life	Contact Rating @ Voltage	Illumination	Actuator Orientation	Actuator Height off PCB, Vertical	Circuit	Outline [y]	Outline [x]
E-Switch LL1105AF065Q	Off-Mom	65 gf	Standard	PC Pin	Through Hole	-20 C	70 °C	0.25 mm	5000000 Cycles	0.05 A 12 VDC	Non-Illuminated	Top Actuated	5 mm	SPST-NO	6 mm	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
