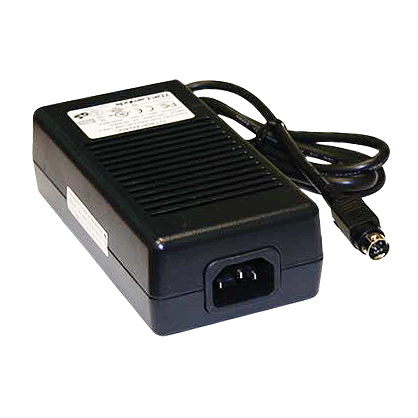

DT80PW120D

Active

TDK-LAMBDA

AC/DC POWER SUPPLY, 1 OUTPUT, 80 W, 12 V, 6.67 A

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC POWER SUPPLY, 1 OUTPUT, 80 W, 12 V, 6.67 A

Technical Specifications

Parameters and characteristics for this part

Specification	DT80PW120D

Applications	ITE (Commercial)
Approval Agency	CE
Cord Length	1.05 m
Cord Length	41.34 in
Current - Output (Max) [Max]	6.67 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	80 W
Region Utilized	International
Size / Dimension [x]	5.2 in
Size / Dimension [x]	132 mm
Size / Dimension [y]	69 mm
Size / Dimension [y]	2.71 "
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Cord Length	Cord Length	Form	No Load Power Consumption [Max]	Voltage - Output	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Power (Watts)	Input Connector	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Applications	Region Utilized	Output Connector	Output Connector	Input Type
TDK-LAMBDA DT80PW120D	1.05 m	41.34 in	Desktop (Class I)	150 mW	12 V	CoC Tier 2 Level VI	90 VAC	264 VAC	70 °C	0 °C	CE	80 W	IEC 320-C14	1.57 "	69 mm	5.2 in	2.71 "	132 mm	40 mm	6.67 A	ITE (Commercial)	International	4 Pin	Power DIN	Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 80 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
