TR9CE3000CLWCIMR6B

Active

GlobTek, Inc.

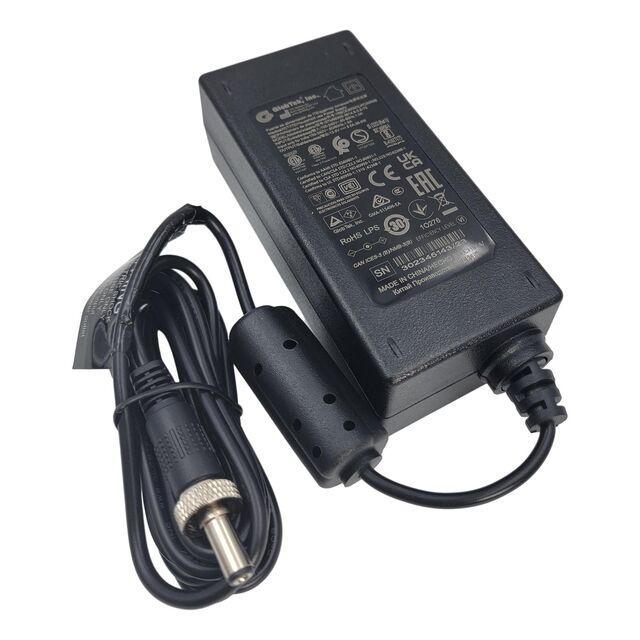

AC/DC DESKTOP ADAPTER 12V 36W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CE3000CLWCIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	S-Mark, CCC, IEC, LPS, UL, CE, PSE, EAC, cETLus, Ukraine, RCM, UKCA, ETL, VCCI, CB, WEEE
Cord Length	1.83 m
Cord Length	72 in
Current - Output (Max) [Max]	3 A
Efficiency	Level V
Efficiency	CoC Tier 2
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	Barrel Plug Locking
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	10 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension	113.3 mm, 35.5 mm, 50 mm
Size / Dimension [x]	4.46 in
Size / Dimension [y]	1.97 "
Size / Dimension [z]	1.4 "
Standard Number	60601-1, 60335-1, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Approval Agency	Input Type	Voltage - Output	Input Connector	Region Utilized	Current - Output (Max) [Max]	Output Connector [diameter]	Output Connector [x]	Output Connector	Form	Cord Length	Cord Length	Standard Number	Polarization	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Power (Watts)	No Load Power Consumption [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Efficiency	Cord Length	No Load Power Consumption
GlobTek, Inc. TR9CE3000L9PCIMR6B	CB CCC CE EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	Cord	12 V	IEC 320-C14	International	3 A	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class I)	1.2 m	47.2 in	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Positive Center	1.4 "	35.5 mm 50 mm 113.3 mm	4.46 in	1.97 "	90 VAC	264 VAC	CoC Tier 2 Level VI	36 W	75 mW	-10 °C	40 °C	Household Appliances ITE (Commercial) Medical
GlobTek, Inc. TR9CE3000CLWCIMR6B	CB CCC CE cETLus EAC ETL IEC LPS PSE RCM S-Mark UKCA Ukraine UL VCCI WEEE	Cord	12 V	IEC 320-C14	International	3 A	2.1 mm 5.5 mm	10 mm	Barrel Plug Locking	Desktop (Class I)		1.83 m	60335-1 60601-1 60950-1 62368-1	Positive Center	1.4 "	35.5 mm 50 mm 113.3 mm	4.46 in	1.97 "	90 VAC	264 VAC	Level V	36 W		-10 °C	40 °C	Household Appliances ITE (Commercial) Medical	CoC Tier 2	72 in	75 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 36 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
