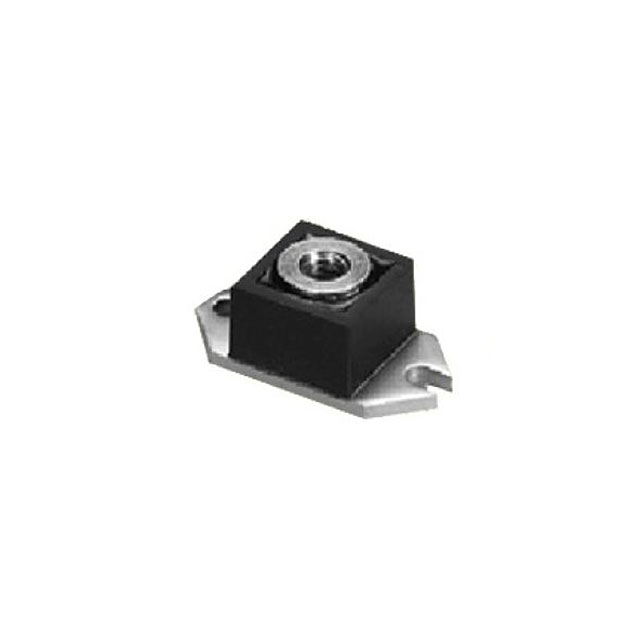

MURH7020R

Active

GeneSiC Semiconductor

DIODE GEN PURP 200V 70A D-67

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE GEN PURP 200V 70A D-67

Technical Specifications

Parameters and characteristics for this part

Specification	MURH7020R

Current - Average Rectified (Io)	70 A
Current - Reverse Leakage @ Vr	25 µA
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	D-67
Reverse Recovery Time (trr)	75 ns
Speed	200 mA, 500 ns
Supplier Device Package	D-67
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Package / Case	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Supplier Device Package
GeneSiC Semiconductor MURH7020R	D-67	1 V	25 µA	70 A	75 ns	200 V	Chassis Mount	Standard	150 °C	-55 °C	200 mA 500 ns	D-67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	108	$ 41.29

General part information

Diode 200 V 70A Chassis Mount D-67
