BLP8G10S-45PY
ActiveAmpleon USA Inc.
RF MOSFET LDMOS 28V 4HSOPF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BLP8G10S-45PY
ActiveAmpleon USA Inc.
RF MOSFET LDMOS 28V 4HSOPF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BLP8G10S-45PY |
|---|---|
| Configuration | Common Source, Dual |
| Current - Test | 224 mA |
| Frequency [Max] | 957.5 MHz |
| Frequency [Min] | 952.5 MHz |
| Gain | 20.8 dB |
| Mounting Type | Surface Mount |

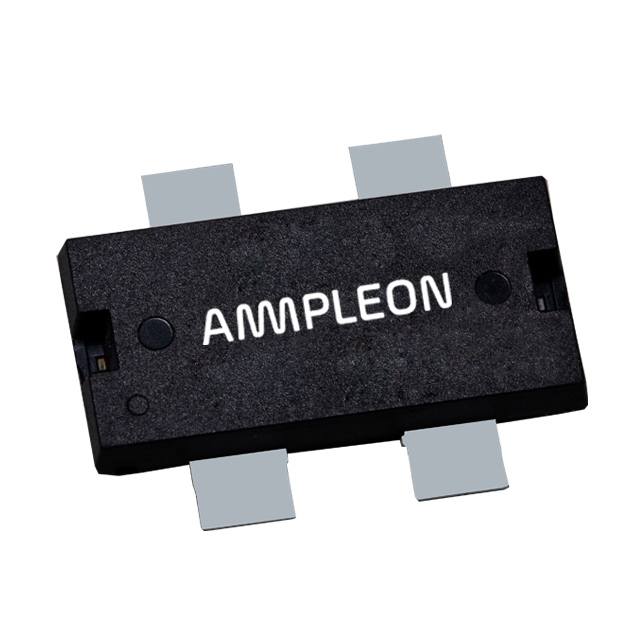

| Package / Case | SOT-1223-1 |
| Power - Output | 2.5 W |
| Supplier Device Package | 4-HSOPF |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 37.23 | |
| Tape & Reel (TR) | 100 | $ 29.32 | ||
| 300 | $ 27.97 | |||
Description
General part information
BLP8G10 Series
RF Mosfet 28 V 224 mA 952.5MHz ~ 957.5MHz 20.8dB 2.5W 4-HSOPF
Documents
Technical documentation and resources
