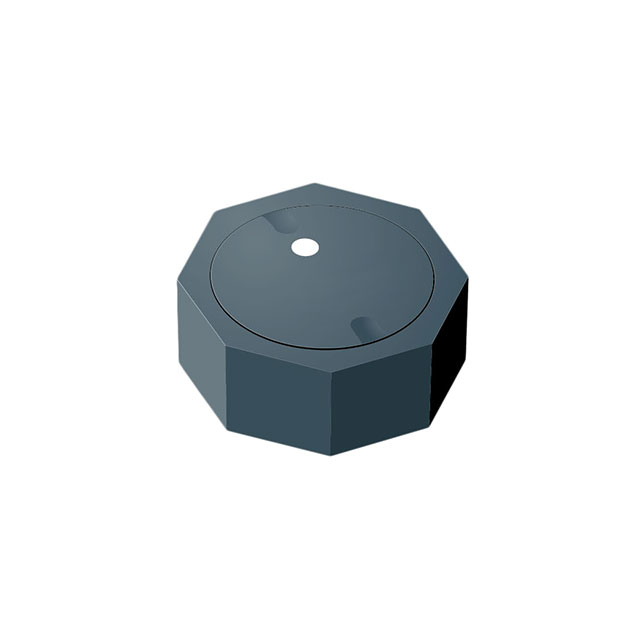

SRU1063A-4R7Y

Active

Bourns Inc.

POWER INDUCTOR (SMD), 4.7 ΜH, 5.5 A, SHIELDED, 5.7 A, SRU1063A SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

SRU1063A-4R7Y

Active

Bourns Inc.

POWER INDUCTOR (SMD), 4.7 ΜH, 5.5 A, SHIELDED, 5.7 A, SRU1063A SERIES

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRU1063A-4R7Y

Current - Saturation (Isat)	5.7 A
Current Rating (Amps)	5.5 Amps
DC Resistance (DCR) [Max]	14 mOhm
Frequency - Self Resonant	30 MHz
Height - Seated (Max) [Max] [z]	6.8 mm
Height - Seated (Max) [Max] [z]	0.268 in
Inductance	4.7 ÁH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-SMD
Q @ Freq	7.96 MHz, 11
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	10 mm
Size / Dimension [x]	0.394 "
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Tolerance	30 %
Type	Wirewound, Drum Core

SRU1063A Series

Part	Frequency - Self Resonant	Inductance Frequency - Test	DC Resistance (DCR)	Mounting Type	Current - Saturation (Isat)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Tolerance	Current Rating (Amps)	Inductance	Shielding	Material - Core	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Q @ Freq	Package / Case	DC Resistance (DCR) [Max]
Bourns Inc. SRU1063A-100Y	18 MHz	100 kHz	18 mOhm	Surface Mount	4 A	10 mm	0.394 in	10 mm	0.394 "	Drum Core Wirewound	30 %	3.8 A	10 µH	Shielded	Ferrite	AEC-Q200	6.8 mm	0.268 in	125 °C	-40 °C	2.52 MHz 14	4-SMD
Bourns Inc. SRU1063A-150Y	14 MHz	100 kHz	42 mOhm	Surface Mount	3.4 A	10 mm	0.394 in	10 mm	0.394 "	Drum Core Wirewound	30 %	3.2 A	15 µH	Shielded	Ferrite	AEC-Q200	6.8 mm	0.268 in	125 °C	-40 °C	2.52 MHz 12	4-SMD
Bourns Inc. SRU1063A-4R7Y	30 MHz	100 kHz		Surface Mount	5.7 A	10 mm	0.394 in	10 mm	0.394 "	Drum Core Wirewound	30 %	5.5 Amps	4.7 ÁH	Shielded	Ferrite	AEC-Q200	6.8 mm	0.268 in	125 °C	-40 °C	7.96 MHz 11	4-SMD	14 mOhm
Bourns Inc. SRU1063A-470Y	6 MHz	100 kHz		Surface Mount	1.6 A	10 mm	0.394 in	10 mm	0.394 "	Drum Core Wirewound	30 %	1.4 A	47 µH	Shielded	Ferrite	AEC-Q200	6.8 mm	0.268 in	125 °C	-40 °C	2.52 MHz 10	4-SMD	150 mOhm
Bourns Inc. SRU1063A-6R8Y	20 MHz	100 kHz	18 mOhm	Surface Mount	5.2 A	10 mm	0.394 in	10 mm	0.394 "	Drum Core Wirewound	30 %	5.2 A	6.8 µH	Shielded	Ferrite	AEC-Q200	6.8 mm	0.268 in	125 °C	-40 °C	7.96 MHz 11	4-SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.24
		10	$ 1.05
		25	$ 0.95
		50	$ 0.90
		100	$ 0.74
		250	$ 0.69
	Digi-Reel®	1	$ 1.24
		10	$ 1.05
		25	$ 0.95
		50	$ 0.90
		100	$ 0.74
		250	$ 0.69
	Tape & Reel (TR)	500	$ 0.47
Newark	Each (Supplied on Cut Tape)	1	$ 0.76
		10	$ 0.74

Description

General part information

SRU1063A Series

The SRU1063A-4R7Y from Bourns is a SRU1063A series SMD shielded power inductor. It is typically used in applications such as driver assistant, infotainment, lighting DC to DC converters, power supplies.
