2717074

Active

Phoenix Contact

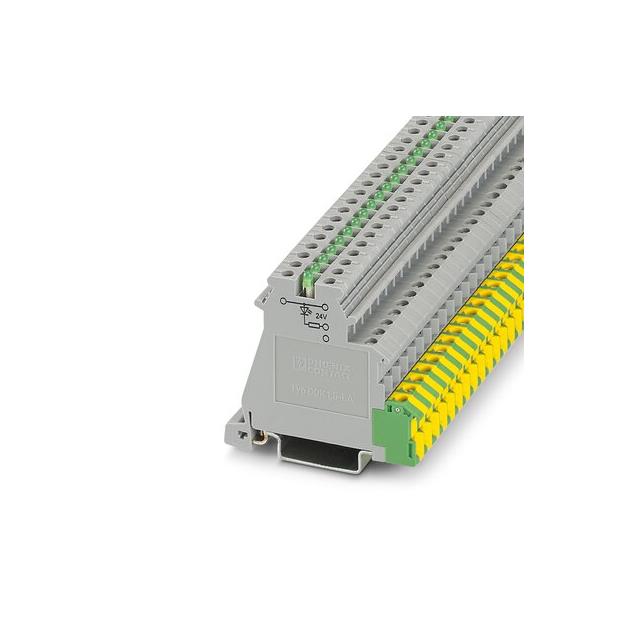

DIN RAIL TERMINAL BLOCKS DOK 1.5-LA 24GN/O-M

Search across all available documentation for this part.

Active

Phoenix Contact

DIN RAIL TERMINAL BLOCKS DOK 1.5-LA 24GN/O-M

Technical Specifications

Parameters and characteristics for this part

Specification	2717074

Color	Gray
Current - IEC	24 A
Features	LED
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-2
Number of Levels	3
Number of Levels [custom]	2
Number of Levels [custom]	1
Number of Positions	4
Stripping Length	8 mm
Terminal - Width [y]	6.2 mm
Termination Style	Screw
Type	Feed Through, Isolated
Voltage - IEC	250 V
Voltage - UL [custom]	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm² [Max]	4 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²

DIN Rail Terminal Blocks DOK 1.5-LA 24GN/O-M

Part	Voltage - UL [custom]	Color	Stripping Length	Features	Current - IEC	Material Flammability Rating	Voltage - IEC	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Levels	Number of Levels [custom]	Number of Levels [custom]	Type	Material - Insulation	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Terminal - Width [y]
Phoenix Contact 2717074	300 V	Gray	8 mm	LED	24 A	UL94 V-2	250 V	4	0.2 mm²	4 mm²	3	2	1	Feed Through Isolated	Nylon Polyamide (PA)	14 AWG	30 AWG	Screw	6.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DIN Rail Terminal Blocks DOK 1.5-LA 24GN/O-M
