UCC28730EVM-552

Active

Texas Instruments

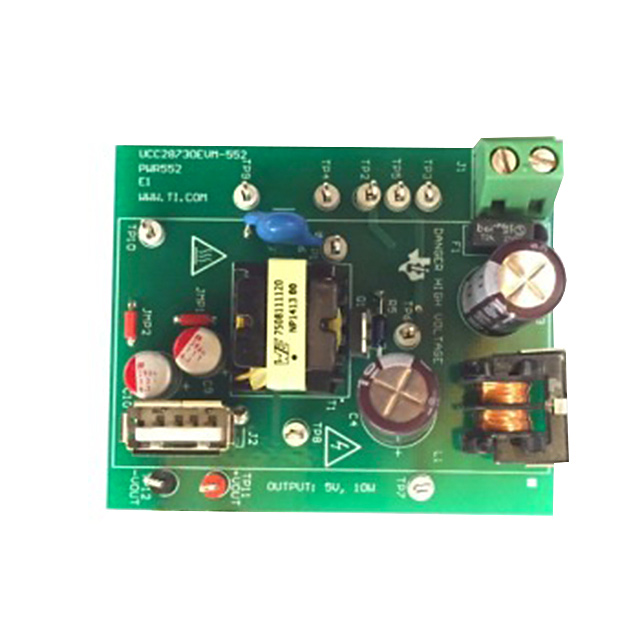

EVAL BOARD FOR UCC28730

Search across all available documentation for this part.

Active

Texas Instruments

EVAL BOARD FOR UCC28730

Technical Specifications

Parameters and characteristics for this part

Specification	UCC28730EVM-552

Board Type	Fully Populated
Current - Output	2 A
Frequency - Switching	28 kHz
Main Purpose	AC/DC, Primary and Secondary Side
Outputs and Type	Isolated
Outputs and Type	1
Power - Output	10 W
Regulator Topology	Flyback
Supplied Contents	Board(s)
Utilized IC / Part	UCC24650, UCC28730
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Output	5 V

Part	Outputs and Type	Outputs and Type	Voltage - Output	Current - Output	Regulator Topology	Utilized IC / Part	Power - Output	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Frequency - Switching	Board Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Mounting Type	Voltage - Start Up	Internal Switch(s)	Output Isolation	Frequency - Switching [Max]	Frequency - Switching [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Fault Protection	Package / Case [custom]	Package / Case	Package / Case [custom]	Package / Case	Topology
Texas Instruments UCC28730EVM-552	Isolated	1	5 V	2 A	Flyback	UCC24650 UCC28730	10 W	AC/DC Primary and Secondary Side	85 VAC	265 VAC	Board(s)	28 kHz	Fully Populated
Texas Instruments UCC28730DR														35 V	9 V	Surface Mount	21 V		Isolated	83 kHz	32 Hz	-40 °C	125 ¯C	7-SOIC	Current Limiting Over Voltage	7	8-SOIC	3.9 mm	0.154 in	Flyback

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 118.80

General part information

UCC24650, UCC28730 - AC/DC, Primary and Secondary Side 1, Isolated Outputs Evaluation Board
