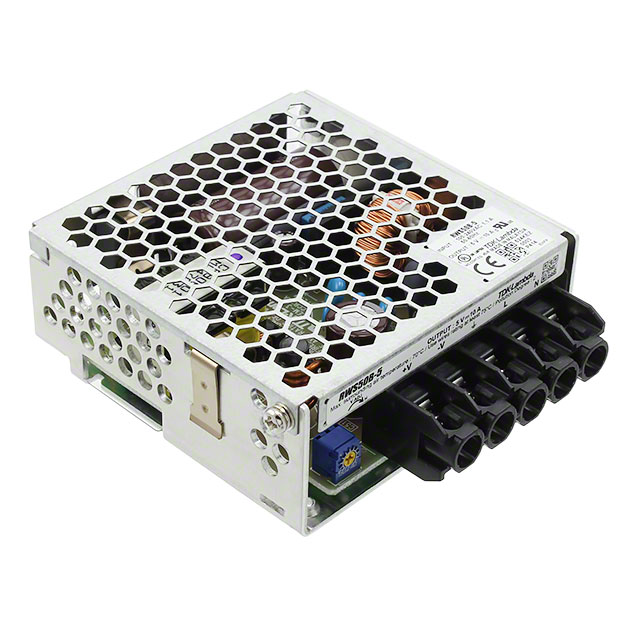

RWS50B-12/CO2 - RWS50B5

RWS50B-12/CO2

Active
TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 51.6 W, 12 V, 4.3 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+3
RWS50B-12/CO2 - RWS50B5

RWS50B-12/CO2

Active
TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 51.6 W, 12 V, 4.3 A

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+3

Technical Specifications

Parameters and characteristics for this part

SpecificationRWS50B-12/CO2
ApplicationsITE (Commercial)
Approval AgencyCE
Current - Output 14.3 A
Efficiency84 %
FeaturesUniversal Input, Adjustable Output, DC Input Capable
Mounting TypeChassis Mount
Number of Outputs1
Operating Temperature [Max]70 °C
Operating Temperature [Min]-20 °C
Power (Watts)50 W
Size / Dimension [x]3.2 "
Size / Dimension [x]81.5 mm
Size / Dimension [y]3.23 "
Size / Dimension [y]82 mm
Size / Dimension [z]1.34 in
Size / Dimension [z]34 mm
TypeConformal Coated, Enclosed
Voltage - Input [Max]265 VAC
Voltage - Input [Min]85 VAC
Voltage - Isolation3000 V
Voltage - Output 112 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 50.96
NewarkEach 1$ 50.96
10$ 47.63
25$ 45.42
50$ 34.90

Description

General part information

RWS50B Series

Enclosed, Conformal Coated AC DC Converters 1 Output 12V 85 ~ 265 VAC Input
