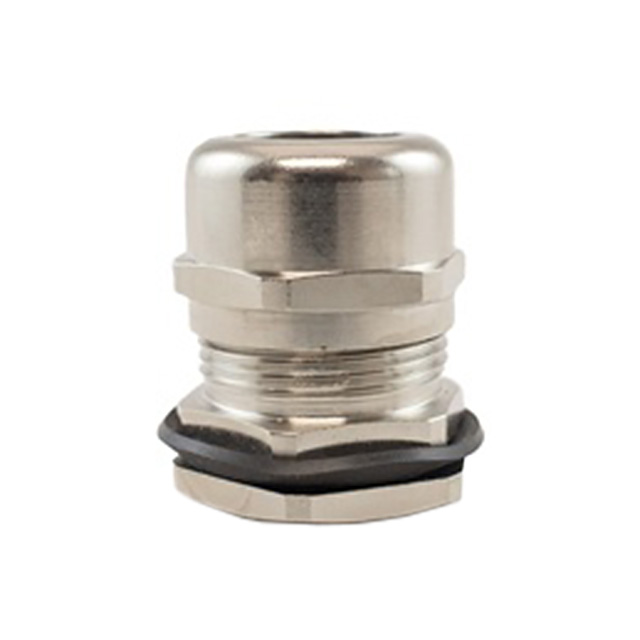

MPG7 NC080

Active

ALPHA WIRE

CABLE ACCESSORIES CABLE GLAND BRASS SILVER NICKEL

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE ACCESSORIES CABLE GLAND BRASS SILVER NICKEL

Technical Specifications

Parameters and characteristics for this part

Specification	MPG7 NC080

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP66/IP68
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.256 "
Outside Cable Diameter (Max) [Max] [diameter]	6.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in
Panel Hole Size	12.5 mm
Panel Hole Size	0.492 in
Thread Length	0.236 in
Thread Length	6 mm
Thread Size	PG7
Type	Cable Gland

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Includes	Type	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size	Panel Hole Size	Color	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection
ALPHA WIRE MPG7 NC080	0.256 "	6.5 mm	PG7	O-Ring Seal	Cable Gland	Brass Nickel Plated	3 mm	0.118 in	12.5 mm	0.492 in	Silver	0.236 in	6 mm	100 °C	-20 C	IP66/IP68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG7 Silver
