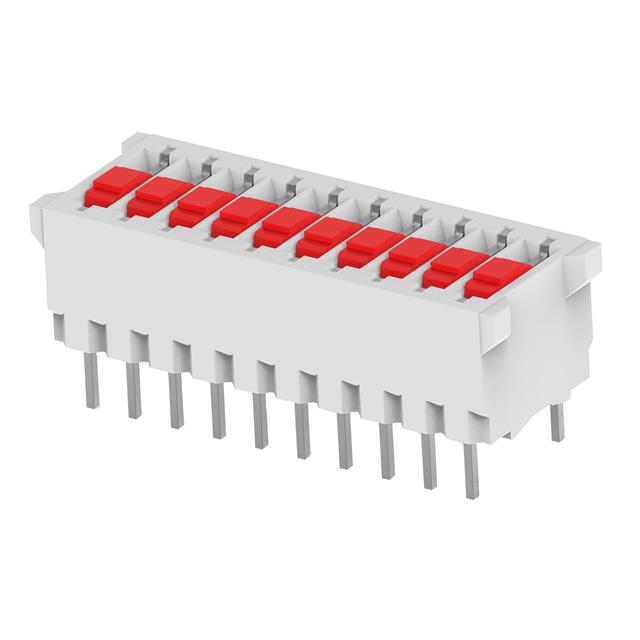

1-5161390-0

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DIP SPST 0.025A 50V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DIP SPST 0.025A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	1-5161390-0

Actuator Level	Raised
Actuator Type	Slide (Standard)
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	SPST
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Length [x]	27.94 mm
Length [x]	1.1 "
Mechanical Life	2000 Cycles
Mounting Type	Through Hole
Number of Positions	10
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	50 V
Washable	False

Part	Voltage Rating	Actuator Level	Actuator Type	Contact Finish	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Electrical Life	Pitch [x]	Pitch	Pitch [x]	Length [x]	Length [x]	Washable	Current Rating (Amps)	Circuit	Contact Material	Body Material	Termination Style	Mechanical Life
TE Connectivity Raychem Cable Protection 1-5161390-0	50 V	Raised	Slide (Standard)	Tin	10	70 °C	-25 °C	Through Hole	2000 Steps	0.1 in	Full	2.54 mm	27.94 mm	1.1 "		25 mA	SPST	Phosphor Bronze	Polyamide (PA) Nylon Glass Filled	PC Pin	2000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	250	$ 7.65

General part information

Dip Switch SPST 10 Position Through Hole Slide (Standard) Actuator 25mA 50VDC
