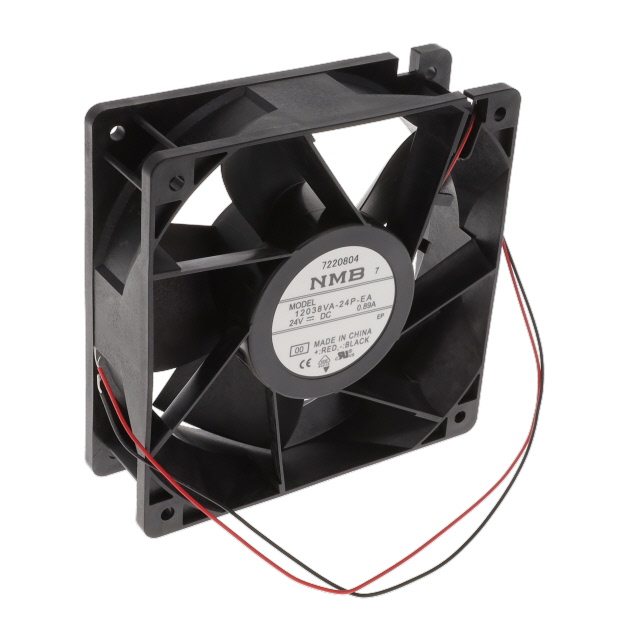

12038VA-24P-EA-00

Active

NMB TECHNOLOGIES

DC FANS DC AXIAL FAN, 120X120X38MM, 24VDC, 190CFM, FLANGE MOUNT, LEAD WIRES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

12038VA-24P-EA-00

Active

NMB TECHNOLOGIES

DC FANS DC AXIAL FAN, 120X120X38MM, 24VDC, 190CFM, FLANGE MOUNT, LEAD WIRES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	12038VA-24P-EA-00

Air Flow	189 CFM
Air Flow	5.29 mł/min
Bearing Type	Ball
Current Rating (Amps)	0.74 A
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	60 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	17.8 W
RPM	5000 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	0.94 in H2O
Static Pressure	234.1 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	18 VDC
Width [y]	38 mm

12038VA Series

Part	Voltage - Rated [custom]	Fan Type	Material - Frame	Lifetime @ Temp.	Termination	Bearing Type	Features	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Material - Blade	Approval Agency	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Air Flow	Air Flow	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Noise	RPM	Voltage - Rated	Static Pressure	Static Pressure	Air Flow	Ingress Protection
NMB TECHNOLOGIES 12038VA-48L-ET-00	48 VDC	Tubeaxial	Plastic	100000 Hrs	3 Wire Leads	Ball	Speed Sensor (Tach)	120 mm	120 mm	38 mm	Plastic	CE CSA UL VDE	370.13 g	0.816 lb	70 °C	70 °C	-10 °C	-10 °C
NMB TECHNOLOGIES 12038VA-24P-EA-00		Tubeaxial	Plastic	40000 Hrs	2 Wire Leads	Ball	Auto Restart	120 mm	120 mm	38 mm	Plastic				60 °C	60 °C	-10 °C	-10 °C	17.8 W	189 CFM	5.29 mł/min	0.74 A	18 VDC	27.6 VDC	60 dB(A)	5000 RPM	24 VDC	0.94 in H2O	234.1 Pa
NMB TECHNOLOGIES 12038VA-24L-EL-00		Tubeaxial	Plastic	100000 Hrs	3 Wire Leads	Ball	Locked Rotor Sensor	120 mm	120 mm	38 mm	Plastic	CE CSA UL VDE	370.13 g	0.816 lb	70 °C	70 °C	-10 °C	-10 °C									24 VDC
NMB TECHNOLOGIES 12038VA-24N-EA-00		Tubeaxial	Plastic	100000 Hrs	2 Wire Leads	Ball		120 mm	120 mm	38 mm	Plastic	CE CSA UL VDE	370.13 g	0.816 lb	70 °C	70 °C	-10 °C	-10 °C	18.24 W		5.11 m³/min	760 mA	18 VDC	27.6 VDC			24 VDC			182.4 CFM
NMB TECHNOLOGIES 12038VA-24R-FU-06		Tubeaxial	Plastic	40000 Hrs	4 Wire Leads	Ball	Auto Restart PWM Control Speed Sensor (Tach)	120 mm	120 mm	38 mm	Plastic	CE cULus VDE			60 °C	60 °C	-10 °C	-10 °C	35.52 W		6.82 mł/min	1.48 A	18 VDC	27.6 VDC	64 dB(A)	6400 RPM	24 VDC	1.5 in H2O	373.6 Pa	243.7 CFM
NMB TECHNOLOGIES 12038VA-24R-GA-00		Tubeaxial	Plastic		2 Wire Leads	Ball		120 mm	120 mm	38 mm	Plastic		370.13 g	0.816 lb	60 °C	60 °C	-10 °C	-10 °C	35.5 W		6.82 mł/min	1.48 A	18 VDC	27.6 VDC	64 dB(A)	6400 RPM	24 VDC	1.48 in H2O	368.7 Pa	243.7 CFM	IP69K - Dust Tight High Temp Water Jets Waterproof
NMB TECHNOLOGIES 12038VA-24M-EA-00		Tubeaxial	Plastic	100000 Hrs	2 Wire Leads	Ball		120 mm	120 mm	38 mm	Plastic	CE CSA UL VDE	370.13 g	0.816 lb	70 °C	70 °C	-10 °C	-10 °C									24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.34
		10	$ 33.19
		40	$ 31.93
		80	$ 29.83
		120	$ 27.52
		280	$ 27.10

Description

General part information

12038VA Series

Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 189.0 CFM (5.29mł/min) 2 Wire Leads
