1411R 0101000

Active

Belden Inc.

12 #24 PR BFS PVC FS

Search across all available documentation for this part.

Active

Belden Inc.

12 #24 PR BFS PVC FS

Technical Specifications

Parameters and characteristics for this part

Specification	1411R 0101000

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	14.1 mm
Jacket (Insulation) Diameter [diameter]	0.555 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.143 mm
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	24
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Polyester, Aluminum
Shield Type	Foil
Usage	Audio
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Number of Conductors	Shield Coverage	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Shield Type	Conductor Insulation	Voltage	Length	Length	Shield Material	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 1411R 0101000	Copper Tinned	Drain Wire Rip Cord	-30 ░C	75 ░C	24 AWG	24	100 %	Black	1.143 mm	0.045 in	Multi-Pair	Foil	Polypropylene (PP)	300 V	1000 ft	304.8 m	Aluminum Polyester	Audio	14.1 mm	0.555 in	UL Style CMR	Poly-Vinyl Chloride (PVC)	32 AWG	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 7.81

General part information

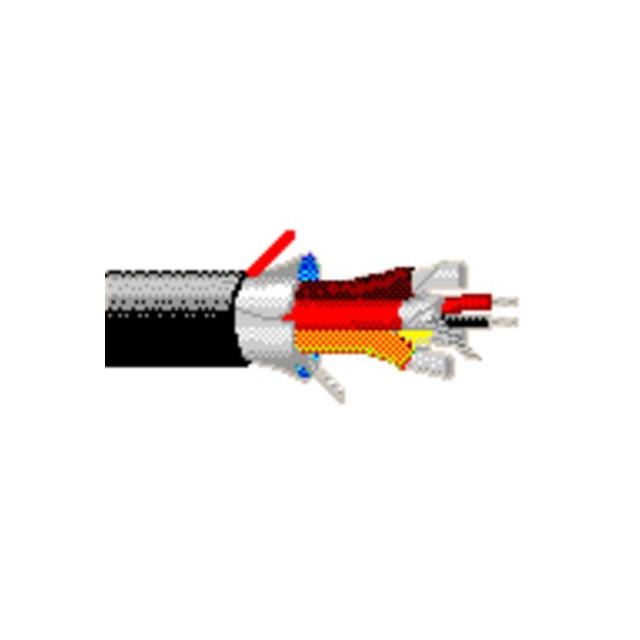

24 (12 Pair) Conductor Multi-Pair Cable Black 24 AWG Foil 1000.0' (304.8m)
