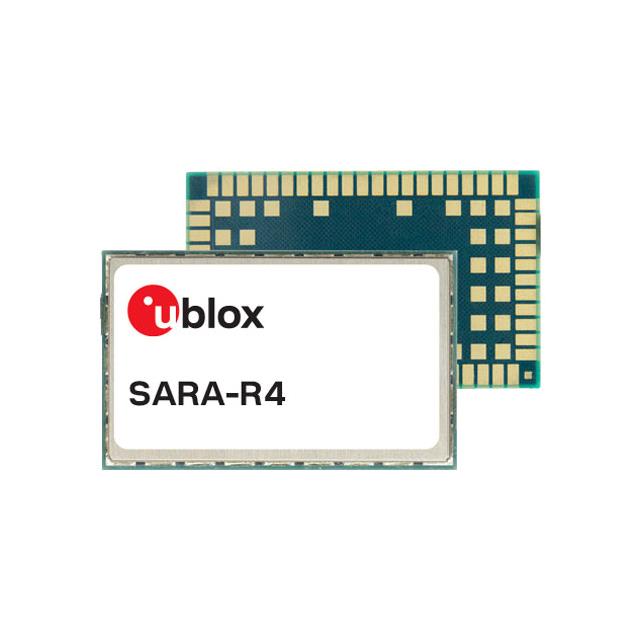

SARA-R410M-83B

Obsolete

u-blox

RF TXRX MOD CELL NAV SMD

Deep-Dive with AI

Search across all available documentation for this part.

SARA-R410M-83B

Obsolete

u-blox

RF TXRX MOD CELL NAV SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SARA-R410M-83B

Antenna Type	Antenna Not Included
Current - Receiving [Max]	190 mA
Current - Receiving [Min]	100 mA
Current - Transmitting [Max]	500 mA
Current - Transmitting [Min]	100 mA
Data Rate	375 kbps
Frequency	1.7 GHz, 2100 MHz, 1800 MHz, 850 MHz, 800 MHz, 900 MHz, 700 MHz, 1900 MHz
Modulation	QPSK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	96-SMD Module
Power - Output	23 dBmW
Protocol	GPS, HSPA, UMTS, LTE, GSM, Galileo, CDMA, GLONASS, GNSS, GPRS
RF Family/Standard	Cellular, Navigation
Sensitivity	-167 dBm
Serial Interfaces	USB, GPIO, I2C, UART

SARA-R410 Series

Part	Mounting Type	Power - Output	Sensitivity	Antenna Type	Frequency	Current - Transmitting [Max]	Current - Transmitting [Min]	Protocol	Current - Receiving [Max]	Current - Receiving [Min]	Package / Case	RF Family/Standard	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Modulation	Serial Interfaces
u-blox SARA-R410M-83B	Surface Mount	23 dBmW	-167 dBm	Antenna Not Included	1.7 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz	500 mA	100 mA	CDMA Galileo GLONASS GNSS GPRS GPS GSM HSPA LTE UMTS	190 mA	100 mA	96-SMD Module	Cellular Navigation	375 kbps	85 °C	-40 °C	QPSK	GPIO I2C UART USB
u-blox SARA-R410M-01B	Surface Mount		-107.5 dBm	Antenna Not Included Castellation	1.7 GHz 700 MHz 850 MHz 1900 MHz	490 mA	100 mA	4G LTE CAT M1/NB-IoT			96-SMD Module	Cellular		85 °C	-40 °C		I2C SPI UART USB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SARA-R410 Series

Cellular, Navigation CDMA, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA, LTE, UMTS Transceiver Module 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz Antenna Not Included Surface Mount

Documents

Technical documentation and resources

No documents available
