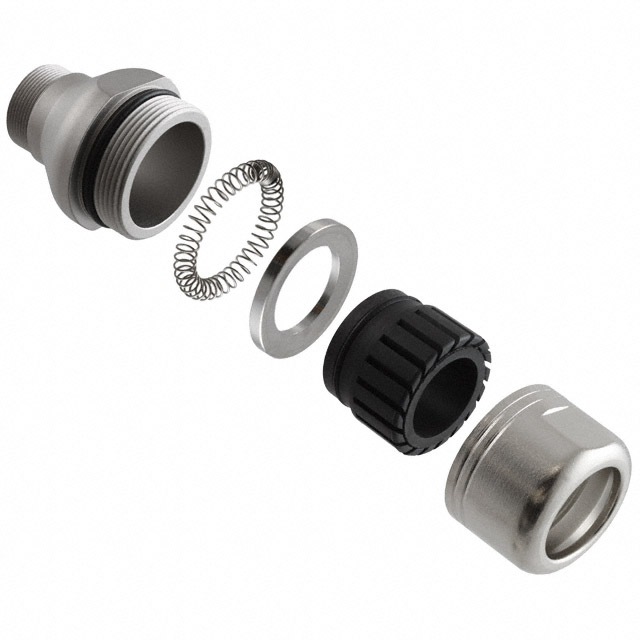

MC3CG-S6

Active

Amphenol Sine Systems Corp

CABLE GRIP 21.5-24MM ZINC

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CABLE GRIP 21.5-24MM ZINC

Technical Specifications

Parameters and characteristics for this part

Specification	MC3CG-S6

Color	Gray
Includes	Gasket, Seal, Nut, EMI Shielding Ring
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Zinc, Nickel Plated
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max]	24 mm
Outside Cable Diameter (Max) [Max]	0.945 in
Outside Cable Diameter (Min) [Min] [diameter]	0.846 in
Outside Cable Diameter (Min) [Min] [diameter]	21.5 mm
Thread Length	0.492 in
Thread Length	12.5 mm
Type	Cable Grip

Part	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Color	Material	Ingress Protection	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Amphenol Sine Systems Corp MC3CG-S2	0.492 in	12.5 mm	0.492 in	12.5 mm	Gray	Zinc Nickel Plated	IP67 - Dust Tight Waterproof	Cable Grip	0.571 in	14.5 mm	-20 C	130 °C	EMI Shielding Ring Gasket Nut Seal
Amphenol Sine Systems Corp MC3CG-S5	0.492 in	12.5 mm	0.748 in		Gray	Zinc Nickel Plated	IP67 - Dust Tight Waterproof	Cable Grip	0.846 "		-20 C	130 °C	EMI Shielding Ring Gasket Nut Seal	19 mm	21.5 mm
Amphenol Sine Systems Corp MC3CG-S3	0.492 in	12.5 mm	0.551 in		Gray	Zinc Nickel Plated	IP67 - Dust Tight Waterproof	Cable Grip	0.669 in	16.99 mm			EMI Shielding Ring Gasket Nut Seal	14 mm
Amphenol Sine Systems Corp MC3CG-S6	0.492 in	12.5 mm	0.846 in		Gray	Zinc Nickel Plated	IP67 - Dust Tight Waterproof	Cable Grip			-20 C	130 °C	EMI Shielding Ring Gasket Nut Seal	21.5 mm	24 mm	0.945 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 26.51

General part information

Cable Grip Zinc, Nickel Plated Gray
