8020.5026.G

Active

SCHURTER Inc.

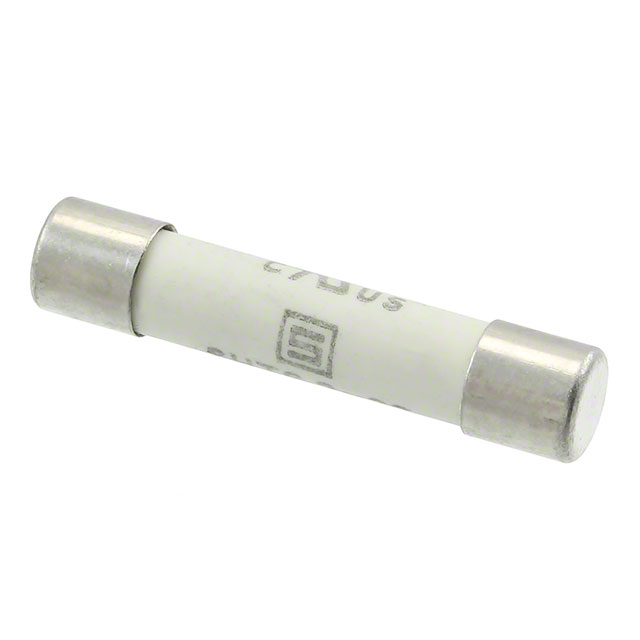

FUSE CERAMIC 32A 400VAC 63VDC

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE CERAMIC 32A 400VAC 63VDC

Technical Specifications

Parameters and characteristics for this part

Specification	8020.5026.G

Breaking Capacity @ Rated Voltage	20 kA, 1.5 kA
Current Rating (Amps)	32 A
Fuse Type	Cartridge, Ceramic
Melting I²t	8750
Mounting Type	Requires Holder
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Cartridge, Non-Standard
Response Time	Slow Blow
Size / Dimension [diameter]	6.35 mm
Size / Dimension [diameter]	0.25 in
Size / Dimension [z]	1.252 in
Size / Dimension [z]	31.8 mm
Voltage Rating - AC	400 V
Voltage Rating - DC	63 VDC

Part	Fuse Type	Package / Case	Voltage Rating - DC	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Melting I²t	Response Time	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Breaking Capacity @ Rated Voltage
SCHURTER Inc. 8020.5026.G	Cartridge Ceramic	Cartridge Non-Standard	63 VDC	1.252 in	31.8 mm	6.35 mm	0.25 in	8750	Slow Blow	Requires Holder	32 A	85 °C	-40 °C	400 V	1.5 kA 20 kA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

32 A 400 V AC 63 V DC Fuse Cartridge, Ceramic Requires Holder Cartridge, Non-Standard
