1P1G14MDBVREPG4

Unknown

Texas Instruments

ENHANCED PRODUCT SINGLE 1.65-V TO 5.5-V INVERTER WITH SCHMITT-TRIGGER INPUTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLOGIC Pocket Data Book (Rev. B)Low-Voltage Logic (LVC) Designer's Guide +25

1P1G14MDBVREPG4

Unknown

Texas Instruments

ENHANCED PRODUCT SINGLE 1.65-V TO 5.5-V INVERTER WITH SCHMITT-TRIGGER INPUTS

Deep-Dive with AI

DocumentsLOGIC Pocket Data Book (Rev. B)Low-Voltage Logic (LVC) Designer's Guide +25

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1P1G14MDBVREPG4

Current - Output High, Low [x]	32 mA
Current - Output High, Low [y]	32 mA
Current - Quiescent (Max) [Max]	19 µA
Features	Schmitt Trigger
Input Logic Level - High [Max]	3.33 V
Input Logic Level - High [Min]	1.16 V
Input Logic Level - Low [Max]	1.87 V
Input Logic Level - Low [Min]	0.39 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	5 ns
Mounting Type	Surface Mount
Number of Circuits	1
Number of Inputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

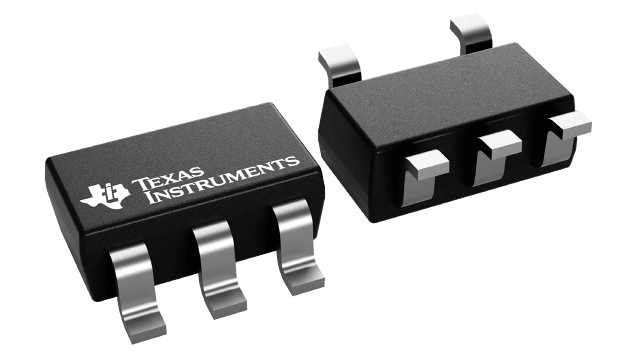

Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	1.65 V

SN74LVC1G14-Q1 Series

Enhanced product single 1.65-V to 5.5-V inverter with Schmitt-Trigger inputs

Part	Number of Circuits	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Logic Type	Number of Inputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Output High, Low [y]	Current - Output High, Low [x]	Max Propagation Delay @ V, Max CL	Supplier Device Package	Mounting Type	Features	Current - Quiescent (Max) [Max]	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Package / Case	Supplier Device Package [x]	Supplier Device Package [y]	Operating Temperature [Max]	Operating Temperature [Min]
Texas Instruments SN74LVC1G14DCKRG4	1	1.16 V	3.33 V	Inverter	1	-40 °C	125 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	SC-70-5	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	5-TSSOP SC-70-5 SOT-353
Texas Instruments SN74LVC1G14DRYR	1	1.16 V	3.33 V	Inverter	1	-40 °C	125 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	6-SON (1.45x1)	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	6-UFDFN
Texas Instruments SN74LVC1G14DRLRG4	1	1.16 V	3.33 V	Inverter	1	-40 °C	125 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	SOT-5	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	SOT-553
Texas Instruments SN74LVC1G14YZPR	1	1.16 V	3.33 V	Inverter	1	-40 °C	85 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	5-DSBGA	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	5-XFBGA DSBGA	1.4	0.9
Texas Instruments SN74LVC1G14DSFR	1	1.16 V	3.33 V	Inverter	1	-40 °C	125 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	6-SON (1x1)	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	6-XFDFN
Texas Instruments SN74LVC1G14YZVR	1	1.16 V	3.33 V	Inverter	1	-40 °C	85 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	4-DSBGA (0.88x0.88)	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	4-XFBGA DSBGA
Texas Instruments SN74LVC1G14DBVRE4	1	1.16 V	3.33 V	Inverter	1	-40 °C	125 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	SOT-23-5	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	SC-74A SOT-753
Texas Instruments SN74LVC1G14DBVTE4	1	1.16 V	3.33 V	Inverter	1	-40 °C	125 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	SOT-23-5	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	SC-74A SOT-753
Texas Instruments SN74LVC1G14MDBVREP	1	1.16 V	3.33 V	Inverter	1			5.5 V	1.65 V	32 mA	32 mA	6.5 ns	SOT-23-5	Surface Mount	Schmitt Trigger	19 µA	0.39 V	1.87 V	SC-74A SOT-753			125 °C	-55 °C
Texas Instruments SN74LVC1G14DPWR	1	1.16 V	3.33 V	Inverter	1	-40 °C	85 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	5-X2SON (0.8x0.8)	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	4-XFDFN Exposed Pad

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.88
		6000	$ 0.85
Texas Instruments	LARGE T&R	1	$ 1.70
		100	$ 1.40
		250	$ 1.01
		1000	$ 0.76

Description

General part information

SN74LVC1G14-Q1 Series

This single Schmitt-trigger inverter is designed for 1.65-V to 5.5-V VCCoperation.

The SN74LVC1G14 device contains one inverter and performs the Boolean function Y =A. The device functions as an independent inverter with Schmitt-trigger inputs, so the device has different input threshold levels for positive-going (VT+) and negative-going (VT–) signals to provide hysteresis (ΔVT) which makes the device tolerant to slow or noisy input signals.

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
