SN74LVC1G14DRYR

Active

Texas Instruments

SINGLE 1.65-V TO 5.5-V INVERTER WITH SCHMITT-TRIGGER INPUTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCMOS Power Consumption and CPD Calculation (Rev. B)Understanding Schmitt Triggers (Rev. B)+31

SN74LVC1G14DRYR

Active

Texas Instruments

SINGLE 1.65-V TO 5.5-V INVERTER WITH SCHMITT-TRIGGER INPUTS

Deep-Dive with AI

DocumentsCMOS Power Consumption and CPD Calculation (Rev. B)Understanding Schmitt Triggers (Rev. B)+31

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SN74LVC1G14DRYR

Current - Output High, Low [x]	32 mA
Current - Output High, Low [y]	32 mA
Current - Quiescent (Max) [Max]	10 µA
Features	Schmitt Trigger
Input Logic Level - High [Max]	3.33 V
Input Logic Level - High [Min]	1.16 V
Input Logic Level - Low [Max]	1.87 V
Input Logic Level - Low [Min]	0.39 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	6.5 ns
Mounting Type	Surface Mount
Number of Circuits	1
Number of Inputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

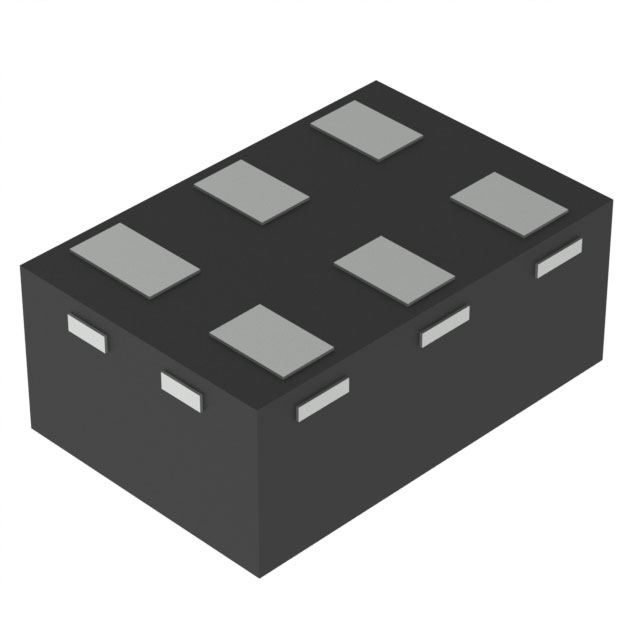

Package / Case	6-UFDFN
Supplier Device Package	6-SON (1.45x1)
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	1.65 V

SN74LVC1G14-Q1 Series

Enhanced product single 1.65-V to 5.5-V inverter with Schmitt-Trigger inputs

Part	Number of Circuits	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Logic Type	Number of Inputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Output High, Low [y]	Current - Output High, Low [x]	Max Propagation Delay @ V, Max CL	Supplier Device Package	Mounting Type	Features	Current - Quiescent (Max) [Max]	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Package / Case	Supplier Device Package [x]	Supplier Device Package [y]	Operating Temperature [Max]	Operating Temperature [Min]
Texas Instruments SN74LVC1G14DCKRG4	1	1.16 V	3.33 V	Inverter	1	-40 °C	125 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	SC-70-5	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	5-TSSOP SC-70-5 SOT-353
Texas Instruments SN74LVC1G14DRYR	1	1.16 V	3.33 V	Inverter	1	-40 °C	125 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	6-SON (1.45x1)	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	6-UFDFN
Texas Instruments SN74LVC1G14DRLRG4	1	1.16 V	3.33 V	Inverter	1	-40 °C	125 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	SOT-5	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	SOT-553
Texas Instruments SN74LVC1G14YZPR	1	1.16 V	3.33 V	Inverter	1	-40 °C	85 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	5-DSBGA	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	5-XFBGA DSBGA	1.4	0.9
Texas Instruments SN74LVC1G14DSFR	1	1.16 V	3.33 V	Inverter	1	-40 °C	125 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	6-SON (1x1)	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	6-XFDFN
Texas Instruments SN74LVC1G14YZVR	1	1.16 V	3.33 V	Inverter	1	-40 °C	85 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	4-DSBGA (0.88x0.88)	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	4-XFBGA DSBGA
Texas Instruments SN74LVC1G14DBVRE4	1	1.16 V	3.33 V	Inverter	1	-40 °C	125 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	SOT-23-5	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	SC-74A SOT-753
Texas Instruments SN74LVC1G14DBVTE4	1	1.16 V	3.33 V	Inverter	1	-40 °C	125 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	SOT-23-5	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	SC-74A SOT-753
Texas Instruments SN74LVC1G14MDBVREP	1	1.16 V	3.33 V	Inverter	1			5.5 V	1.65 V	32 mA	32 mA	6.5 ns	SOT-23-5	Surface Mount	Schmitt Trigger	19 µA	0.39 V	1.87 V	SC-74A SOT-753			125 °C	-55 °C
Texas Instruments SN74LVC1G14DPWR	1	1.16 V	3.33 V	Inverter	1	-40 °C	85 °C	5.5 V	1.65 V	32 mA	32 mA	6.5 ns	5-X2SON (0.8x0.8)	Surface Mount	Schmitt Trigger	10 µA	0.39 V	1.87 V	4-XFDFN Exposed Pad

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.46
		10	$ 0.37
		25	$ 0.34
		100	$ 0.25
		250	$ 0.23
		500	$ 0.19
		1000	$ 0.14
		2500	$ 0.13
	Digi-Reel®	1	$ 0.46
		10	$ 0.37
		25	$ 0.34
		100	$ 0.25
		250	$ 0.23
		500	$ 0.19
		1000	$ 0.14
		2500	$ 0.13
	Tape & Reel (TR)	5000	$ 0.12
		10000	$ 0.11
		25000	$ 0.10
		50000	$ 0.10
Texas Instruments	LARGE T&R	1	$ 0.22
		100	$ 0.15
		250	$ 0.12
		1000	$ 0.08

Description

General part information

SN74LVC1G14-Q1 Series

This single Schmitt-trigger inverter is designed for 1.65-V to 5.5-V VCCoperation.

The SN74LVC1G14 device contains one inverter and performs the Boolean function Y =A. The device functions as an independent inverter with Schmitt-trigger inputs, so the device has different input threshold levels for positive-going (VT+) and negative-going (VT–) signals to provide hysteresis (ΔVT) which makes the device tolerant to slow or noisy input signals.

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

Documents

Technical documentation and resources

SN74LVC1G14DRYR

Deep-Dive with AI

SN74LVC1G14DRYR

Deep-Dive with AI

Technical Specifications

SN74LVC1G14-Q1 Series

Pricing

Description

SN74LVC1G14-Q1 Series

Documents

CMOS Power Consumption and CPD Calculation (Rev. B)

Understanding Schmitt Triggers (Rev. B)

Enabling Optimal Solar Inverter Power Stage Designs with Logic

Use of the CMOS Unbuffered Inverter in Oscillator Circuits

Input and Output Characteristics of Digital Integrated Circuits

LOGIC Pocket Data Book (Rev. B)

Signal Switch Data Book (Rev. A)

Bus-Interface Devices With Output-Damping Resistors Or Reduced-Drive Outputs (Rev. A)

Implications of Slow or Floating CMOS Inputs (Rev. E)

LVC Characterization Information

LVC and LV Low-Voltage CMOS Logic Data Book (Rev. B)

TI IBIS File Creation, Validation, and Distribution Processes

Generate a Power-On Reset Pulse

Power-Up 3-State (PU3S) Circuits in TI Standard Logic Devices

16-Bit Widebus Logic Families in 56-Ball, 0.65-mm Pitch Very Thin Fine-Pitch BGA (Rev. B)

Live Insertion

Semiconductor Packing Material Electrostatic Discharge (ESD) Protection

Design Summary for WCSP Little Logic (Rev. B)

Solving CMOS Transition Rate Issues Using Schmitt Trigger Solution (Rev. A)

How to Select Little Logic (Rev. A)

SN74LVC1G14 Single Schmitt-Trigger Inverter datasheet (Rev. Y)

Logic Guide (Rev. AB)

Generate an Enable Signal that can be Toggled

Designing and Manufacturing with TI's X2SON Packages

Understanding and Interpreting Standard-Logic Data Sheets (Rev. C)

Selecting the Right Level Translation Solution (Rev. A)

Texas Instruments Little Logic Application Report

Standard Linear & Logic for PCs, Servers & Motherboards

STANDARD LINEAR AND LOGIC FOR DVD/VCD PLAYERS

Understanding Advanced Bus-Interface Products Design Guide

Little Logic Guide 2018 (Rev. G)

Low-Voltage Logic (LVC) Designer's Guide

Migration From 3.3-V To 2.5-V Power Supplies For Logic Devices

SN74LVC1G14-Q1 Series
