91523-1
ActiveTE Application Tooling

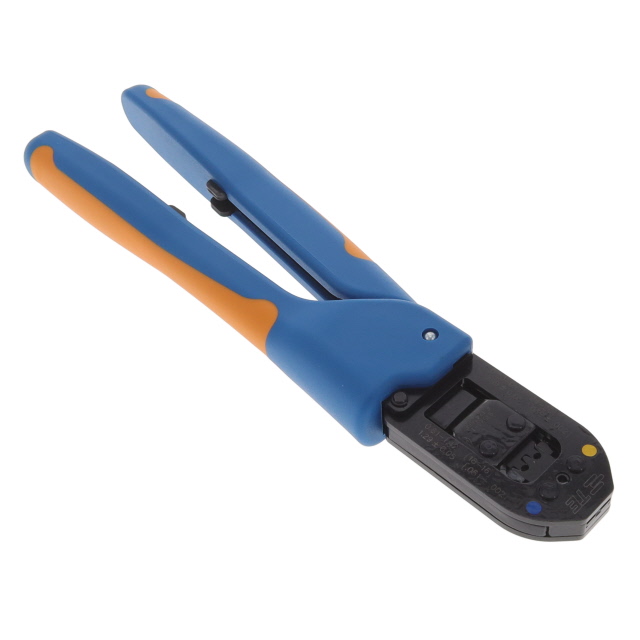

TOOL HAND CRIMPER 16-24AWG SIDE
Deep-Dive with AI
Search across all available documentation for this part.
Documents91523 Data Sheet
91523-1
ActiveTE Application Tooling
TOOL HAND CRIMPER 16-24AWG SIDE
Deep-Dive with AI
Documents91523 Data Sheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 91523-1 |
|---|---|
| For Use With/Related Products | Backplane and Circular Contacts |
| Ratcheting | Ratchet |
| Tool Type | Hand Crimper |
| Wire Entry Location | Side Entry |
| Wire Gauge or Range - AWG [Max] | 24 AWG |
| Wire Gauge or Range - AWG [Min] | 16 AWG |
91523 Series
| Part | Wire Entry Location | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | For Use With/Related Products | Tool Type | Ratcheting | For Use With/Related Products [Min] | For Use With/Related Products [Max] |
|---|---|---|---|---|---|---|---|---|
TE Application Tooling | Side Entry | 24 AWG | 16 AWG | Backplane and Circular Contacts | Hand Crimper | Ratchet | ||
TE Application Tooling | Backplane Circular Contacts | Crimp Head | 16 AWG | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1005.89 | |
| 5 | $ 971.21 | |||
| 10 | $ 936.52 | |||
Description
General part information
91523 Series
Hand Crimper Tool Backplane and Circular Contacts
Documents
Technical documentation and resources
