A-1PA-178-01KN2

Active

Amphenol RF

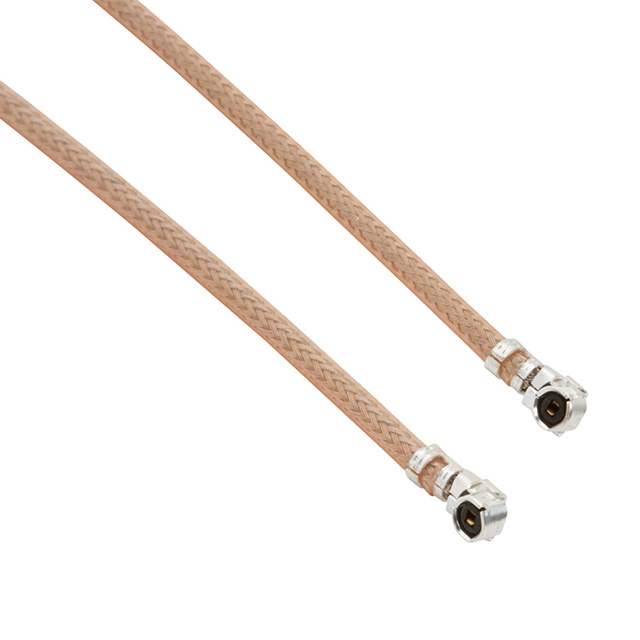

CBL ASSY U.FL UMCC PLUG-PLG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

A-1PA-178-01KN2

Active

Amphenol RF

CBL ASSY U.FL UMCC PLUG-PLG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A-1PA-178-01KN2

1st Connector	U.FL (UMCC), AMC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	AMC Plug, U.FL (UMCC), Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Natural
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	AMC, AMC to U.FL (UMCC), U.FL (UMCC)

A-1PA-178 Series

Part	Features	Frequency - Max [Max]	Length	Length	Length	1st Connector Mounting Type	1st Contact Gender	2nd Contact Gender	Color	2nd Connector Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	1st Connector	Style	Overall Impedance	Cable Type	2nd Connector	Cable Impedance	Length [x]	Length [x]
Amphenol RF A-1PA-178-01KN2	Shielded	3 GHz	1 m	3.3 ft	39.4 in	Free Hanging (In-Line)	Female	Female	Natural	Free Hanging (In-Line)	90 °C	-40 °C	U.FL (UMCC) AMC Plug Right Angle	AMC AMC to U.FL (UMCC) U.FL (UMCC)	50 Ohms	RG-178	AMC Plug Right Angle U.FL (UMCC)	50 Ohms
Amphenol RF A-1PA-178-300N2	Shielded	3 GHz				Free Hanging (In-Line)	Female	Female	Natural	Free Hanging (In-Line)	90 °C	-40 °C	U.FL (UMCC) AMC Plug Right Angle	AMC AMC to U.FL (UMCC) U.FL (UMCC)	50 Ohms	RG-178	AMC Plug Right Angle U.FL (UMCC)	50 Ohms	300 mm	11.811 in
Amphenol RF A-1PA-178-400N2	Shielded	3 GHz	400 mm		15.75 "	Free Hanging (In-Line)	Female	Female	Natural	Free Hanging (In-Line)	90 °C	-40 °C	U.FL (UMCC) AMC Plug Right Angle	AMC AMC to U.FL (UMCC) U.FL (UMCC)	50 Ohms	RG-178	AMC Plug Right Angle U.FL (UMCC)	50 Ohms
Amphenol RF A-1PA-178-200N2	Shielded	3 GHz	200 mm		7.874 in	Free Hanging (In-Line)	Female	Female	Natural	Free Hanging (In-Line)	90 °C	-40 °C	U.FL (UMCC) AMC Plug Right Angle	AMC AMC to U.FL (UMCC) U.FL (UMCC)	50 Ohms	RG-178	AMC Plug Right Angle U.FL (UMCC)	50 Ohms
Amphenol RF A-1PA-178-500N2	Shielded	3 GHz	50 cm		19.69 "	Free Hanging (In-Line)	Female	Female	Natural	Free Hanging (In-Line)	90 °C	-40 °C	U.FL (UMCC) AMC Plug Right Angle	AMC AMC to U.FL (UMCC) U.FL (UMCC)	50 Ohms	RG-178	AMC Plug Right Angle U.FL (UMCC)	50 Ohms
Amphenol RF A-1PA-178-150N2	Shielded	3 GHz				Free Hanging (In-Line)	Female	Female	Natural	Free Hanging (In-Line)	90 °C	-40 °C	U.FL (UMCC) AMC Plug Right Angle	AMC AMC to U.FL (UMCC) U.FL (UMCC)	50 Ohms	RG-178	AMC Plug Right Angle U.FL (UMCC)	50 Ohms	150 mm	5.906 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 16.51
		10	$ 14.64
		25	$ 14.08
		50	$ 13.51
		100	$ 12.76
		300	$ 11.64
		500	$ 10.88
		1000	$ 9.98

Description

General part information

A-1PA-178 Series

Cable Assembly Coaxial U.FL (UMCC), AMC to U.FL (UMCC), AMC RG-178 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
