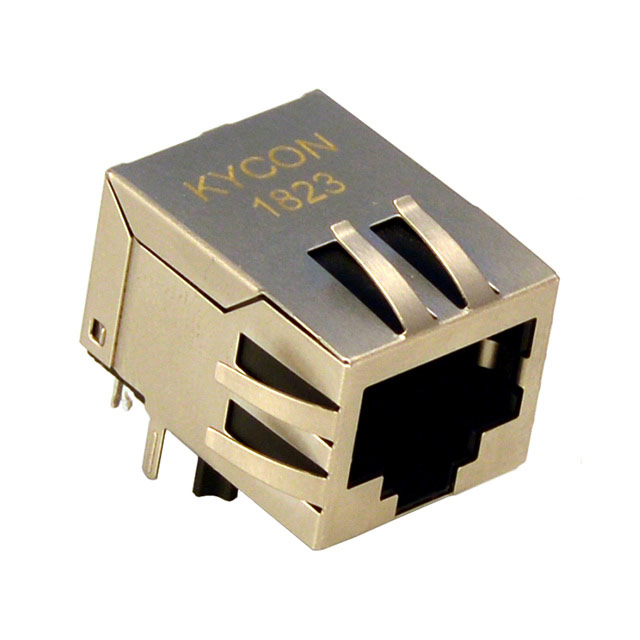

G8X-188S7-BP

Active

Kycon, Inc.

CONN JACK 1PORT PCB

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN JACK 1PORT PCB

Technical Specifications

Parameters and characteristics for this part

Specification	G8X-188S7-BP

Applications	10/100 Base-T
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	0.152 Ám
Contact Finish Thickness	6 Áin
Contact Material	Phosphor Bronze
Features	Board Guide
Height Above Board	13.45 mm
Height Above Board	0.53 in
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

Part	Features	Shielding	LED Color	Number of Rows	Contact Finish	Tab Direction	Housing Material	Number of Ports	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Height Above Board	Height Above Board	Termination	Contact Finish Thickness	Contact Finish Thickness	Shield Material	Connector Type	Applications	Orientation
Kycon, Inc. G8X-188S7-BP	Board Guide	Shielded EMI Finger	Does Not Contain LED	1	Gold	Down	Polybutylene Terephthalate (PBT)	1	Through Hole	85 °C	-40 °C	Phosphor Bronze	13.45 mm	0.53 in	Solder	0.152 Ám	6 Áin	Brass	RJ45	10/100 Base-T	90 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100 Base-T
