Q-680440005009I

Active

Amphenol Custom Cable

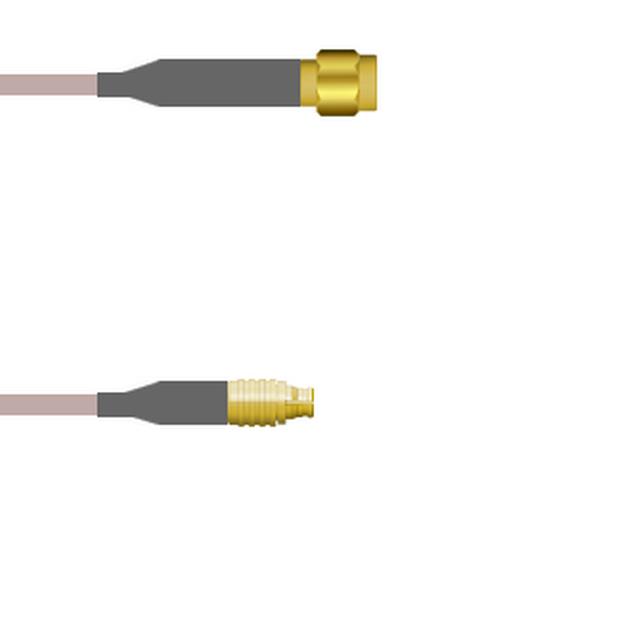

CBL ASSY RPSMA-SMP PLUG-PLUG 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-680440005009I

Active

Amphenol Custom Cable

CBL ASSY RPSMA-SMP PLUG-PLUG 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-680440005009I

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMP Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	RP-SMA to SMP

Q-680440 Series

Part	Connector Impedance	1st Contact Gender	Length	Length	Length	Style	1st Connector	Color	Cable Type	Frequency - Max [Max]	1st Connector Mounting Type	2nd Contact Gender	Features	2nd Connector	2nd Connector Mounting Type	Overall Impedance	Cable Impedance	Length [x]	Length [x]
Amphenol Custom Cable Q-680440005001M	50 Ohms	Female	1 m	3.3 ft	39.4 in	RP-SMA to SMP	RP-SMA Plug	Copper	RG-316	3 GHz	Free Hanging (In-Line)	Female	Shielded	SMP Plug	Free Hanging (In-Line)	50 Ohms	50 Ohms
Amphenol Custom Cable Q-680440005018I	50 Ohms	Female				RP-SMA to SMP	RP-SMA Plug	Copper	RG-316	3 GHz	Free Hanging (In-Line)	Female	Shielded	SMP Plug	Free Hanging (In-Line)	50 Ohms	50 Ohms	457.2 mm	457.2 mm
Amphenol Custom Cable Q-680440005003I	50 Ohms	Female	76.2 mm		3 in	RP-SMA to SMP	RP-SMA Plug	Copper	RG-316	3 GHz	Free Hanging (In-Line)	Female	Shielded	SMP Plug	Free Hanging (In-Line)	50 Ohms	50 Ohms
Amphenol Custom Cable Q-6804400050.5M	50 Ohms	Female	50 cm		19.69 "	RP-SMA to SMP	RP-SMA Plug	Copper	RG-316	3 GHz	Free Hanging (In-Line)	Female	Shielded	SMP Plug	Free Hanging (In-Line)	50 Ohms	50 Ohms
Amphenol Custom Cable Q-680440005009I	50 Ohms	Female	228.6 mm		9 "	RP-SMA to SMP	RP-SMA Plug	Copper	RG-316	3 GHz	Free Hanging (In-Line)	Female	Shielded	SMP Plug	Free Hanging (In-Line)	50 Ohms	50 Ohms
Amphenol Custom Cable Q-680440005.75M	50 Ohms	Female	750 mm		29.53 "	RP-SMA to SMP	RP-SMA Plug	Copper	RG-316	3 GHz	Free Hanging (In-Line)	Female	Shielded	SMP Plug	Free Hanging (In-Line)	50 Ohms	50 Ohms
Amphenol Custom Cable Q-680440005002M	50 Ohms	Female	2 m	6.6 ft	78.7 in	RP-SMA to SMP	RP-SMA Plug	Copper	RG-316	3 GHz	Free Hanging (In-Line)	Female	Shielded	SMP Plug	Free Hanging (In-Line)	50 Ohms	50 Ohms
Amphenol Custom Cable Q-680440005084I	50 Ohms	Female	2.1 m	7 ft	84 in	RP-SMA to SMP	RP-SMA Plug	Copper	RG-316	3 GHz	Free Hanging (In-Line)	Female	Shielded	SMP Plug	Free Hanging (In-Line)	50 Ohms	50 Ohms
Amphenol Custom Cable Q-6804400051.5M	50 Ohms	Female	1.5 m	4.9 ft	59.1 in	RP-SMA to SMP	RP-SMA Plug	Copper	RG-316	3 GHz	Free Hanging (In-Line)	Female	Shielded	SMP Plug	Free Hanging (In-Line)	50 Ohms	50 Ohms
Amphenol Custom Cable Q-6804400052.5M	50 Ohms	Female	2.5 m	8.2 '	98.4 in	RP-SMA to SMP	RP-SMA Plug	Copper	RG-316	3 GHz	Free Hanging (In-Line)	Female	Shielded	SMP Plug	Free Hanging (In-Line)	50 Ohms	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 108.67
		25	$ 106.56
		50	$ 104.45
		100	$ 102.34
		250	$ 100.23

Description

General part information

Q-680440 Series

Cable Assembly Coaxial RP-SMA to SMP RG-316 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
