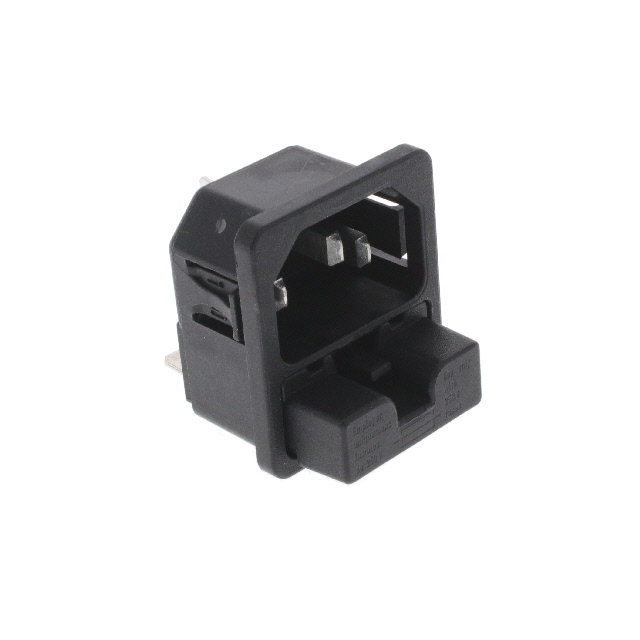

6220.5210

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); 6220; IP40

Search across all available documentation for this part.

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); 6220; IP40

Technical Specifications

Parameters and characteristics for this part

Specification	6220.5210

Accomodates a Fuse	True
Approval Agency	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.6 mm
Panel Cutout Dimensions [y]	31.5 mm
Panel Thickness	1 mm
Panel Thickness	0.039 in
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Mounting Type	Current Rating - Appliance Inlet	Material Flammability Rating	Filter Type	Voltage Rating - Appliance Inlet	Accomodates a Fuse	Approval Agency	Fuse Holder, Drawer	Panel Thickness [x]	Panel Thickness [x]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Termination	Connector Type	Connector Style	Ingress Protection	Panel Thickness	Panel Thickness
SCHURTER Inc. 6220.5225	Panel Mount Snap-In	10 A	UL94 V-0	Unfiltered - Commercial	250 VAC		CCC CSA ENEC UL	Fuse Holder	2.5 mm	0.098 in	31.5 mm	27.6 mm	0.189 " 4.8 mm	Quick Connect	Receptacle Male Blades - Module	IEC 320-C14	IP40
SCHURTER Inc. 6220.5210	Panel Mount Snap-In	10 A	UL94 V-0	Unfiltered - Commercial	250 VAC		CCC CSA ENEC UL	Fuse Holder			31.5 mm	27.6 mm	0.189 " 4.8 mm	Quick Connect	Receptacle Male Blades - Module	IEC 320-C14	IP40	1 mm	0.039 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
