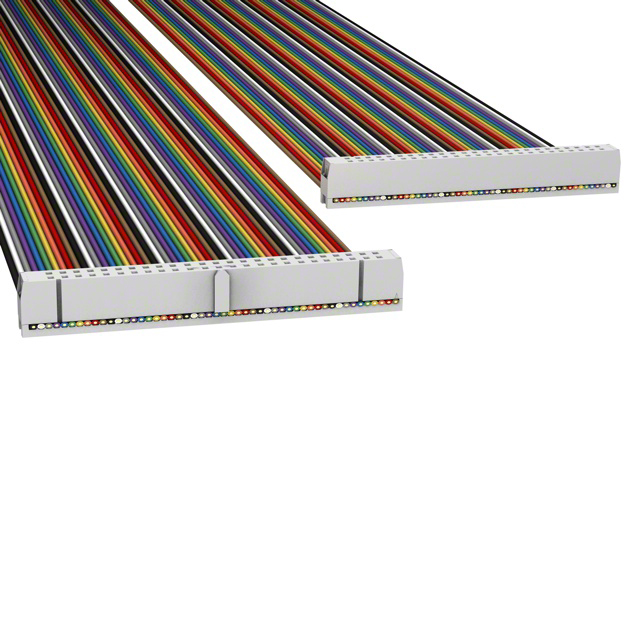

H3CCS-5006M

Active

Assmann WSW Components

IDC CBL - HHKC50S/AE50M/HHKC50S

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKC50S/AE50M/HHKC50S

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Number of Rows	Color	Cable Termination	Pitch - Connector	Pitch - Connector	Features	Shielding	Pitch - Cable	Pitch - Cable	Connector Type	Length [x]	Length [x]	Number of Positions	Length	Length	Length
Assmann WSW Components H3CCS-5036M	Tin	2	Multiple Ribbon	IDC	0.1 in	2.54 mm	Polarizing Key	Unshielded	0.05 "	1.27 mm	Socket to Socket	3 ft	914.4 mm	50
Assmann WSW Components H3CCS-5006M	Tin	2	Multiple Ribbon	IDC	0.1 in	2.54 mm	Polarizing Key	Unshielded	0.05 "	1.27 mm	Socket to Socket			50	152.4 mm	6 "	0.5 '
Assmann WSW Components H3CCS-5036G	Tin	2		IDC	0.1 in	2.54 mm	Polarizing Key	Unshielded	0.05 "	1.27 mm	Socket to Socket	3 ft	914.4 mm	50
Assmann WSW Components H3CCS-5006G	Tin	2		IDC	0.1 in	2.54 mm	Polarizing Key	Unshielded	0.05 "	1.27 mm	Socket to Socket			50	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
