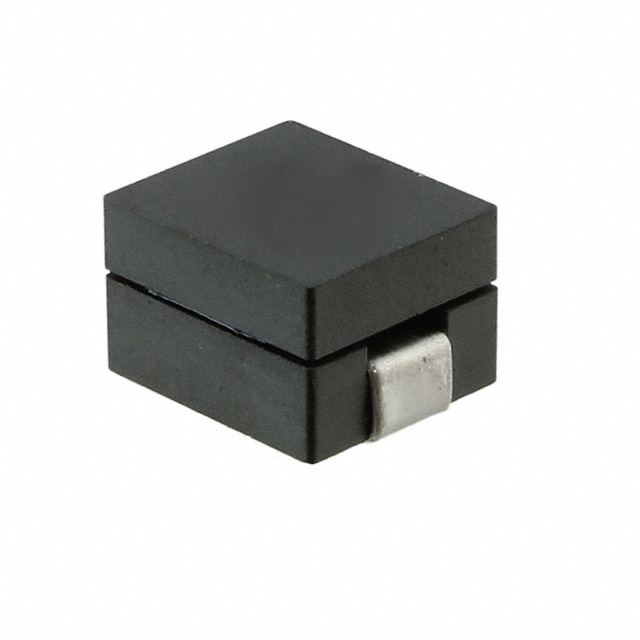

PI60-02-FPIZ
ObsoleteVicor Corporation
FIXED IND 80NH 90A 0.5 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PI60-02-FPIZ
ObsoleteVicor Corporation
FIXED IND 80NH 90A 0.5 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PI60-02-FPIZ |
|---|---|
| Current Rating (Amps) | 90 A |
| DC Resistance (DCR) [Max] | 500 µOhm |
| Height - Seated (Max) [Max] | 6.4 mm |
| Height - Seated (Max) [Max] [z] | 0.252 " |
| Inductance | 80 nH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2-SMD |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.382 in |
| Size / Dimension [x] | 9.7 mm |
| Size / Dimension [y] | 0.319 in |
| Size / Dimension [y] | 8.1 mm |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PI60 Series
80 nH Unshielded Inductor 90 A 0.5mOhm Max 2-SMD
